Products > Inductive proximity sensor > Speed sensor > DI6001 DGA4012-WPKG/US Compact speed monitor
Product name : DI6001 DGA4012-WPKG/US Compact speed monitor
Item : 20182714614
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

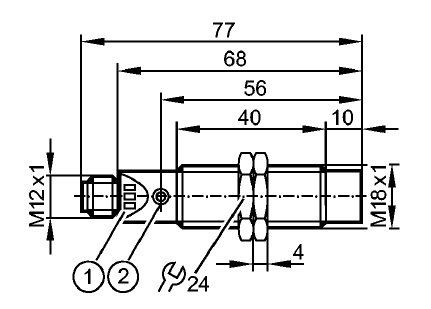

 DI6001

DGA4012-WPKG/US

1: 3 LED
2: setting pushbutton

Product characteristics
Compact speed monitor M18
DGA
Switching output and pulse output
Sensing range 12 mm [nf]
non-flush mountable

Application

Application

Evaluation of rotating and linear movements for speed below the preset value,

blockage

Switching function

output is switched during the start-up delay and if (f actual) is greater than (f preset)

*

Electrical design

DC PNP

Switching output

normally open / closed programmable

Electrical data

Nominal voltage [V]

10...36 DC **)

Current consumption [mA]

< 15

Reverse polarity protection

yes

Protection class

II

Outputs

Transistor

Current rating [mA]

250 / 15 ***)

Voltage drop [V]

< 2.5

Short-circuit protection

pulsed

Overload protection

yes

Range

Sensing range [mm]

12

Correction factors

mild steel = 1 / stainless steel approx. 0.8 / brass approx. 0.5 / Al approx. 0.4 / Cu

approx. 0.3

Measuring / setting range

Setting range [pulses/min.]

3...6000

Adjustment of the switch point

Teach function

Hysteresis [% of Sp]

10

Start-up delay [s]

0...15

Reaction times

Damping frequency (max.) [pulses/min]

18000

Environment

Ambient temperature [°C]

-20...80

Protection

IP 67

Tests / approvals

EMC

EN 60947-5-2

Safety classification

MTTF [a]

1031

Mechanical data

Mounting

non-flush mountable

Housing materials

stainless steel 316Ti / 1.4571; PBT

Weight [kg]

0.065

Displays / operating elements

Operation LED

green

Input pulses LED

green

Output status indication LED

yellow

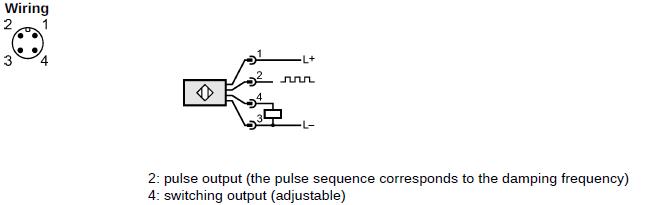

Electrical connection

Connection

M12 connector; gold-plated contacts

Remarks

Remarks

*) factory setting

**) cULus - Class 2 source required

***) switching output / pulse output

Pack quantity [piece]

1
