Electrical Data:
Rated current: 2A
Rated voltag: 60V
Contact resistance: ≤ 5mΩ
Insulation resistance: ≥ 100MΩ
Connector Specification:
Connector locking system: Screw-locking
Waterproof O-ring: FKM
Insert: PA66+GF
Female contacts: Phosphorus copper with gold plated
Male contacts: Brass with gold plated
Screw: Brass with nickel plated
Termination: Riveting
Over-mold: PVC/PU/TPU
Cable/Wire Specification:
Wire gauge (AWG): 22AWG or 24AWG
Wire gauge (mm² ): 0.34mm² Or 0.25mm²
Wire insulation: PVC
Cable jacket: PVC/PUR
Operation temperature: -25° C ~ +80° C or -40° C ~ +105° C
Standard M12:
1. The M12 circular connector we produced conform to international standard IEC61076-2-104 with M12*1.0 screw locking compatible with Binder, Phoenix, LTW, Molex...
2. Waterproof rating is IP67, protected from dust and water during immersion, resistant to many oils and chemical
Quality Contral:
1. All materials conform to RoHS, REACH without any harmful substance comprising strickly checked QC
2.100% testing for open circuit and short circuit and 100% smooth operation before shipping
3. Insulation resistance: 10M OHM
4. Hi-pot: DC 30V 10ms
Our Service:
To Be Your The Best Connection Expert
1. Low cost but good quality in ip67 waterproof in locked condition with ISO9001 management under efficient service
2. Provide free samples within 2 working days if it is normal product with existing tooling
3.10 years quality assurance
4. OEM, ODM are available

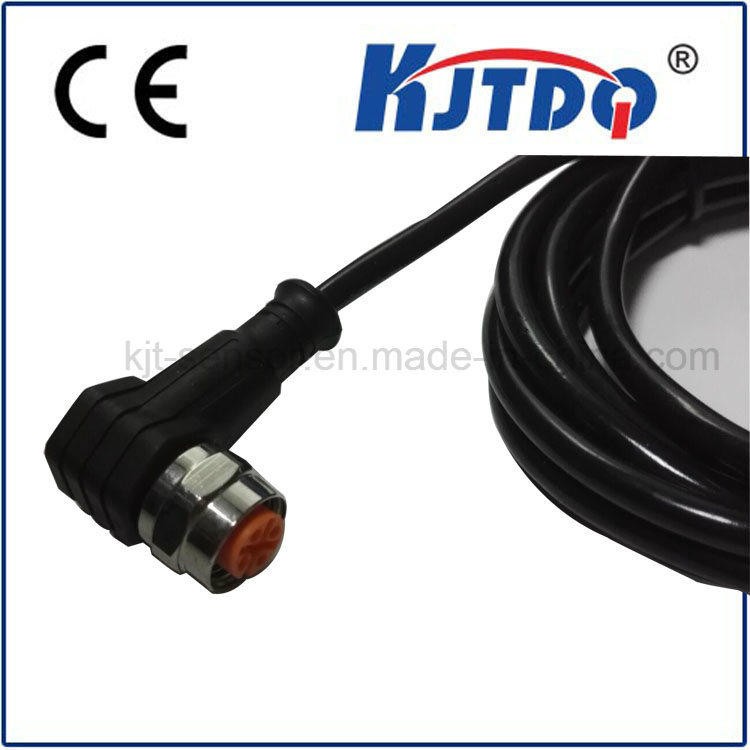

Factory Customized IP67 Cable Connector for M12/M18 Sensor
