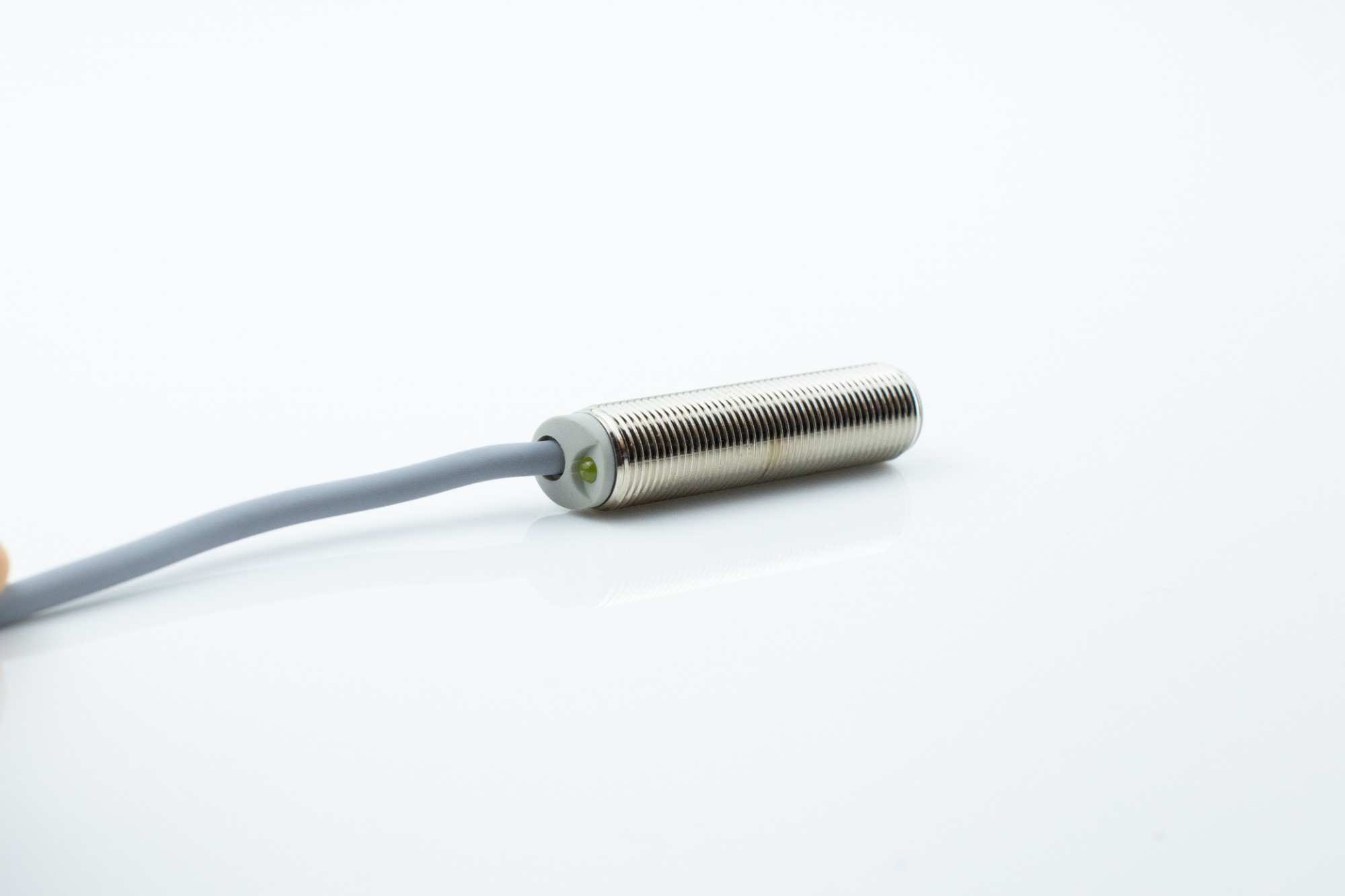

Inductive sensor NBB1-3M22-E2-0,3M-V3

Ultra Small inductive proximity sensor

Inductive sensor NBB1-3M22-E2-0,3M-V3

  • 1 mm flush
  • Miniature design
  • Cable with M8 plug
  • Product Detail

Datasheet excerpt: Technical data of  NBB1-3M22-E2-0,3M-V3

General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 1 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 0.81 mm
Reduction factor rAl 0.4
Reduction factor rCu 0.29
Reduction factor r304 0.76
Reduction factor rBrass 0.46
Output type 3-wire
Nominal ratings
Operating voltage 10 ... 30 V
Switching frequency 0 ... 700 Hz
Hysteresis typ. 5%
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 3 V
Operating current 0 ... 100 mA
Off-state current 0 ... 0.1 mA typ. at 25 °C
No-load supply current ≤ 10 mA
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 1340 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
Standards EN IEC 60947-5-2
Approvals and certificates
UL approval cULus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type fixed cable with plug
Housing material Stainless steel 1.4305 / AISI 303
Sensing face PC
Degree of protection IP67
Connector
Threading M8 x 1
Tightening torque 0.4 Nm
Number of pins 3
Cable
Cable diameter 2.6 mm ± 0.1 mm
Bending radius > 10 x cable diameter
Material PUR
Color grey
Number of cores 3
Core cross section 0.055 mm2
Length 0.3 m
Mass 12 g
Dimensions
Length 22 mm
Diameter 3 mm
