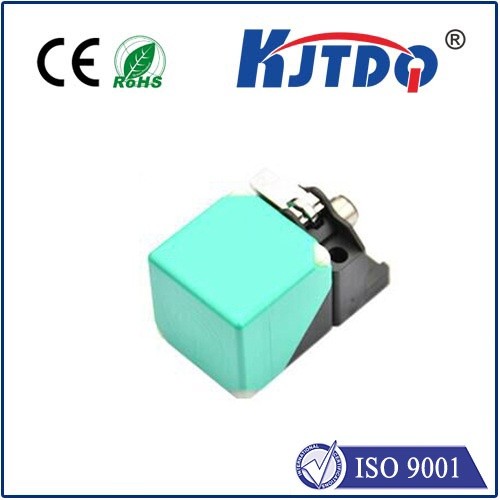

Inductive sensor NBB20-L2-E2-V1

Square type Photoelectric sensor

Inductive sensor NBB20-L2-E2-V1

  • Sensor head bidirectional and rotatable
  • 4 LEDs indicator for 360° visibility
  • 20 mm flush
  • 3-wire DC
  • Quick mounting bracket
  • Product Detail

Datasheet excerpt: Technical data of  NBB20-L2-E2-V1

General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 20 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 16.2 mm
Actual operating distance 18 ... 22 mm
Reduction factor rAl 0.33
Reduction factor rCu 0.31
Reduction factor r304 0.74
Reduction factor rBrass 0.41
Output type 3-wire
Nominal ratings
Operating voltage 10 ... 30 V DC
Switching frequency 0 ... 440 Hz
Hysteresis typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 2 V
Operating current 0 ... 200 mA
Off-state current 0 ... 0.5 mA
No-load supply current ≤ 20 mA
Time delay before availability 80 ms
Operating voltage indicator LED, green
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 1289 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
Standards EN 60947-5-2:2007
EN 60947-5-2/A1:2012
IEC 60947-5-2:2007
IEC 60947-5-2 AMD 1:2012
Approvals and certificates
Protection class II
Rated insulation voltage 253 V
Rated impulse withstand voltage 4000 V
UL approval cULus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 85 °C (-13 ... 185 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type Connector plug M12 x 1 , 4-pin
Housing material PA
Sensing face PA
Degree of protection IP68 / IP69K
Cable
Cable diameter 3.3 mm ± 0.15 mm
Mass 130 g
Dimensions
Height 40 mm
Width 40 mm
Length 67 mm
