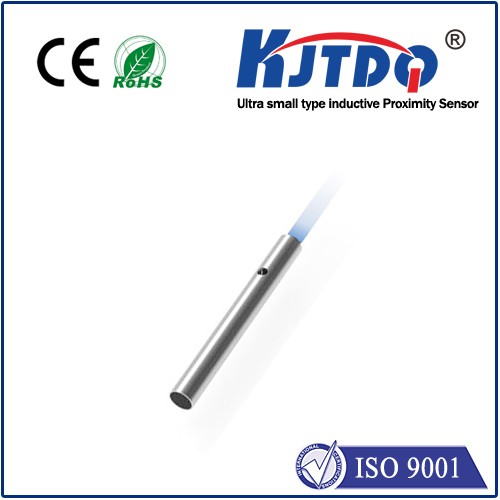

General specifications
|
|
Switching function
|
Normally open (NO)
|
|
Output type
|
PNP
|
|
Rated operating distance
|
0.8 mm
|
|
Installation
|
flush
|
|
Output polarity
|
DC
|
|
Assured operating distance
|
0 ... 0.648 mm
|
|
Reduction factor rAl
|
0.45
|
|
Reduction factor rCu
|
0.4
|
|
Reduction factor r304
|
0.77
|
|
Output type
|
3-wire
|
|
Nominal ratings
|
|
Operating voltage
|
10 ... 30 V
|
|
Switching frequency
|
0 ... 3000 Hz
|
|
Hysteresis
|
typ. 5%
|
|
Reverse polarity protection
|
reverse polarity protected
|
|
Short-circuit protection
|
pulsing
|
|
Voltage drop
|
≤ 3 V
|
|
Operating current
|
0 ... 200 mA
|
|
Off-state current
|
0 ... 0.1 mA typ. 0.1 µA at 25 °C
|
|
No-load supply current
|
≤ 10 mA
|
|
Switching state indicator
|
LED, yellow
|
|
Functional safety related parameters
|
|
MTTFd
|
1400 a
|
|
Mission Time (TM)
|
20 a
|
|
Diagnostic Coverage (DC)
|
0 %
|
|
Compliance with standards and directives
|
|
Standard conformity
|
|
|
|
Standards
|
EN IEC 60947-5-2
|
|
Approvals and certificates
|
|
UL approval
|
cULus Listed, General Purpose
|
|
CCC approval
|
CCC approval / marking not required for products rated ≤36 V
|
|
Ambient conditions
|
|
Ambient temperature
|
-25 ... 70 °C (-13 ... 158 °F)
|
|
Mechanical specifications
|
|
Connection type
|
fixed cable with plug
|
|
Housing material
|
Stainless steel 1.4305 / AISI 303
|
|
Sensing face
|
PC
|
|
Degree of protection
|
IP67
|
|
Connector
|
|
|
|
Threading
|
M8 x 1
|
|
|
Number of pins
|
3
|
|
Cable
|
|
|
|
Cable diameter
|
3 mm - 0.2 mm
|
|
|
Bending radius
|
> 12 x cable diameter
|
|
|
Material
|
PVC
|
|
|
Color
|
grey
|
|
|
Number of cores
|
3
|
|
|
Core cross section
|
0.14 mm2
|
|
|
Length
|
0.3 m
|
|
Dimensions
|
|
|
|
Length
|
25 mm
|
|
|
Diameter
|
4 mm
|
