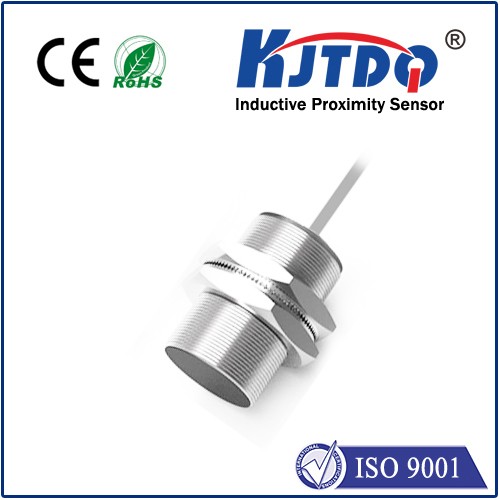

Inductive sensor NBB10-30GK50-E2-30M

Inductive proximity sensor

Inductive sensor NBB10-30GK50-E2-30M

  • With increased sealing, protection class
    IP68 / IP69K
  • Product Detail

Datasheet excerpt: Technical data of  NBB10-30GK50-E2-30M

General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance 10 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 8.1 mm
Reduction factor rAl 0.3
Reduction factor rCu 0.3
Reduction factor r304 0.8
Output type 3-wire
Nominal ratings
Operating voltage 10 ... 30 V
Switching frequency 0 ... 200 Hz
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 3 V
Operating current 0 ... 200 mA
No-load supply current ≤ 20 mA
Switching state indicator all direction LED, yellow
Functional safety related parameters
MTTFd 2062 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
Standards EN IEC 60947-5-2
Approvals and certificates
UL approval cULus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type cable PVC , 30 m
Core cross section 0.34 mm2
Housing material PBT
Sensing face PBT
Degree of protection IP68 / IP69K
Dimensions
Length 50 mm
Diameter 30 mm
Note use only delivered nuts

Classifications





System Classcode
ECLASS 13.0 27274001
ECLASS 12.0 27274001
ECLASS 11.0 27270101
ECLASS 10.0.1 27270101
ECLASS 9.0 27270101
ECLASS 8.0 27270101
ECLASS 5.1 27270101
ETIM 9.0 EC002714
ETIM 8.0 EC002714
ETIM 7.0 EC002714
ETIM 6.0 EC002714
ETIM 5.0 EC002714
UNSPSC 12.1 39121550
