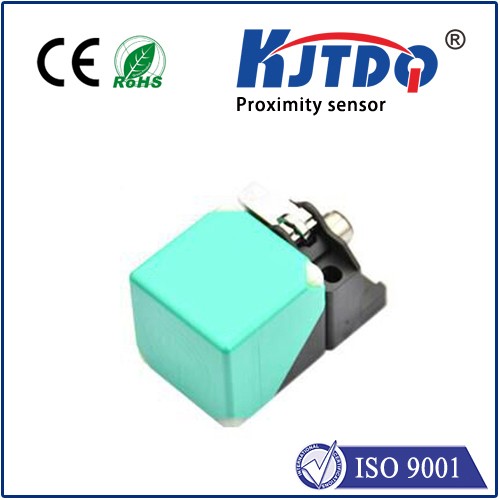

Inductive sensor NBB20-L2M-EU-175MM-4DT04

Inductive proximity sensor

Inductive sensor NBB20-L2M-EU-175MM-4DT04

  • 0.5 / 4.5 VDC switching output for mobile equipment controls
  • 20 mm flush
  • Deutsch 4-pin, DT04 connector
  • Customer-specific cable length
  • Sensor head bidirectional and rotatable
  • Power and output LEDs
  • Product Detail

Datasheet excerpt: Technical data of  NBB20-L2M-EU-175MM-4DT04

General specifications
Output type Digital voltage output
Rated operating distance 20 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 16.2 mm
Actual operating distance 18 ... 22 mm
Actuating element mild steel, e. g. 1.0037, SR235JR (formerly St37-2)
60 mm x 60 mm x 1 mm
Reduction factor rAl 0.33
Reduction factor rCu 0.31
Reduction factor r304 0.74
Reduction factor rBrass 0.41
Output type 3-wire
Nominal ratings
Operating voltage 10 ... 30 V DC
Switching frequency 0 ... 440 Hz
Hysteresis typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection yes
Temperature drift ≤ 10 %
No-load supply current ≤ 15 mA
Time delay before availability ≤ 40 ms
Load resistor min. 20 kΩ
Operating voltage indicator LED, green
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 953 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Digital output
Output value object detected: 4.5 V ± 0.2 V
object not detected: 0.5 V ± 0.2 V
Compliance with standards and directives
Standard conformity
Standards EN IEC 60947-5-2
Approvals and certificates
CCC approval CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature -40 ... 80 °C (-40 ... 176 °F)
Storage temperature -40 ... 80 °C (-40 ... 176 °F)
Mechanical specifications
Connection type fixed cable with plug
Housing material PA-GF35
metal base Xylan coated
metal mounting flange Xylan coated.
Sensing face PA-GF35
Degree of protection IP69K
Connector
Number of pins 4
Connection assembly Deutsch connector DT04-4P-CE02
Deutsch wedge W4P
Deutsch contact 1060-16-0622
Cable
Material PUR
Color black
Core cross section 0.75 mm2
Length 150 mm ± max. 5 mm
Mass 272 g
Dimensions
Height 40 mm
Width 40 mm
Length 67 mm
