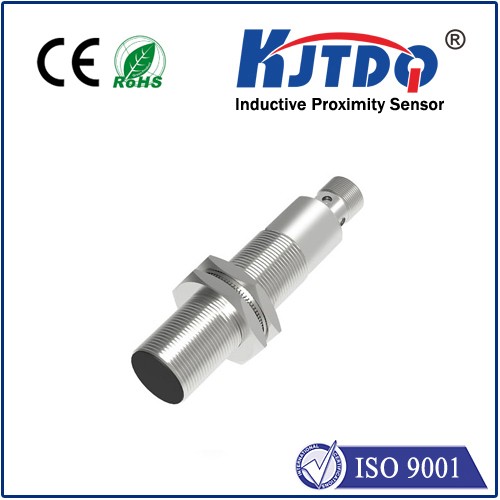

Inductive sensor NBB5-18GM40-Z3-V1

Inductive proximity sensor

Inductive sensor NBB5-18GM40-Z3-V1

  • 5 mm flush
  • 2-wire DC
  • Product Detail

Datasheet excerpt: Technical data of  NBB5-18GM40-Z3-V1

General specifications
Switching function Normally open (NO)
Output type Two-wire
Rated operating distance 5 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 4.05 mm
Actual operating distance 4.5 ... 5.5 mm typ. 5 mm
Reduction factor rAl 0.34
Reduction factor rCu 0.31
Reduction factor r304 0.72
Output type 2-wire
Nominal ratings
Operating voltage 5 ... 60 V
Switching frequency 0 ... 500 Hz
Hysteresis 1 ... 10 typ. 5 %
Reverse polarity protection reverse polarity tolerant
Short-circuit protection pulsing
Voltage drop ≤ 5 V
Operating current 2 ... 100 mA
Lowest operating current 2 mA
Off-state current 0 ... 0.5 mA typ.
Switching state indicator Multihole-LED, yellow
Functional safety related parameters
MTTFd 1870 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
Standards EN IEC 60947-5-2
Approvals and certificates
UL approval cULus Listed, General Purpose
CCC approval Certified by China Compulsory Certification (CCC)
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type Connector plug M12 x 1 , 4-pin
Housing material brass, nickel-plated
Sensing face PBT
Degree of protection IP67
Dimensions
Length 40 mm
Diameter 18 mm
