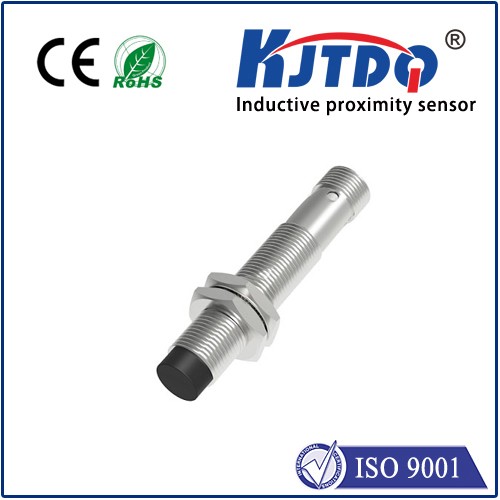

General specifications
|
|
Switching function
|
Normally open (NO)
|
|
Output type
|
Two-wire
|
|
Rated operating distance
|
4 mm
|
|
Installation
|
non-flush
|
|
Output polarity
|
DC
|
|
Assured operating distance
|
0 ... 3.24 mm
|
|
Actual operating distance
|
3.6 ... 4.4 mm typ.
|
|
Reduction factor rAl
|
0.37
|
|
Reduction factor rCu
|
0.36
|
|
Reduction factor r304
|
0.74
|
|
Output type
|
2-wire
|
|
Nominal ratings
|
|
Operating voltage
|
5 ... 60 V
|
|
Switching frequency
|
0 ... 1000 Hz
|
|
Hysteresis
|
1 ... 10 typ. 5 %
|
|
Reverse polarity protection
|
reverse polarity tolerant
|
|
Short-circuit protection
|
pulsing
|
|
Voltage drop
|
≤ 5 V
|
|
Operating current
|
2 ... 100 mA
|
|
Lowest operating current
|
2 mA
|
|
Off-state current
|
0 ... 0.5 mA typ.
|
|
Switching state indicator
|
Multihole-LED, yellow
|
|
Functional safety related parameters
|
|
MTTFd
|
2300 a
|
|
Mission Time (TM)
|
20 a
|
|
Diagnostic Coverage (DC)
|
0 %
|
|
Compliance with standards and directives
|
|
Standard conformity
|
|
|
|
Standards
|
EN IEC 60947-5-2
|
|
Approvals and certificates
|
|
UL approval
|
cULus Listed, General Purpose
|
|
CCC approval
|
Certified by China Compulsory Certification (CCC)
|
|
Ambient conditions
|
|
Ambient temperature
|
-25 ... 70 °C (-13 ... 158 °F)
|
|
Mechanical specifications
|
|
Connection type
|
Connector plug M12 x 1 , 4-pin
|
|
Housing material
|
brass, nickel-plated
|
|
Sensing face
|
PBT
|
|
Degree of protection
|
IP67
|
|
Dimensions
|
|
|
|
Length
|
40 mm
|
|
|
Diameter
|
12 mm
|
