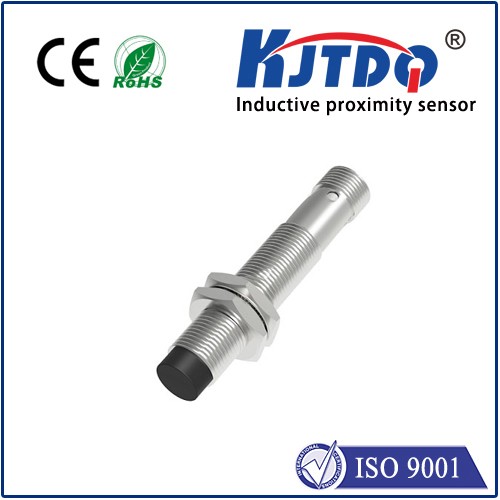

Inductive sensor NBN8-12GM65-US-V12

Inductive proximity sensor

Inductive sensor NBN8-12GM65-US-V12

  • 8 mm non-flush
  • 2-wire AC/DC
  • Product Detail

Datasheet excerpt: Technical data of  NBN8-12GM65-US-V12

General specifications
Switching function Normally open (NO)
Output type Two-wire
Rated operating distance 8 mm
Installation non-flush
Output polarity AC/DC
Reduction factor rAl 0.5
Reduction factor rCu 0.45
Reduction factor r304 0.75
Output type 2-wire
Nominal ratings
Switching frequency 30 Hz
Hysteresis 3 ... 15 typ. 5 %
Reverse polarity protection reverse polarity tolerant
Short-circuit protection yes
Voltage drop ≤ 8 V
Rated operating current 8 ... 200 mA AC/DC
Off-state current ≤ 0.8 mA
Operating voltage indicator LED, green
Switching state indicator LED, yellow
Electrical specifications
Rated operating voltage 20 ... 250 V AC/DC
Compliance with standards and directives
Standard conformity
Standards EN IEC 60947-5-2
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval Certified by China Compulsory Certification (CCC)
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type Connector plug 1/2"-20 UN , 3-pin
Housing material brass, nickel-plated
Sensing face PBT
Degree of protection IP67
Dimensions
Length 82 mm
Diameter 12 mm
General information
Scope of delivery 2 self locking nuts in scope of delivery
