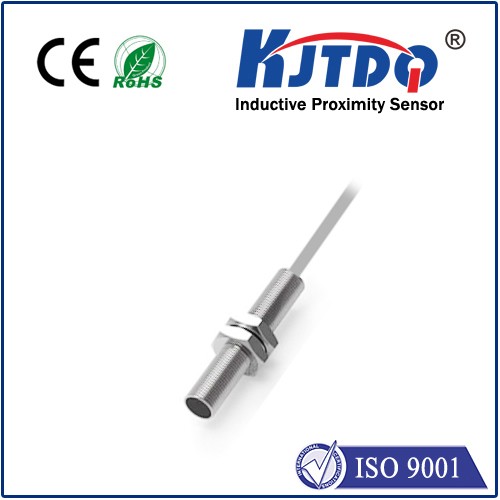

Inductive sensor NCB1,5-8GM40-Z0

Inductive proximity sensor

Inductive sensor NCB1,5-8GM40-Z0

  • 1.5 mm flush
  • 2-wire DC
  • Product Detail

Datasheet excerpt: Technical data of  NCB1,5-8GM40-Z0

General specifications
Switching function Normally open (NO)
Output type Two-wire
Rated operating distance 1.5 mm
Installation flush
Output polarity DC
Assured operating distance 0 ... 1.21 mm
Actual operating distance 1.35 ... 1.65 mm typ.
Reduction factor rAl 0.22
Reduction factor rCu 0.16
Reduction factor r304 0.64
Output type 2-wire
Nominal ratings
Operating voltage 5 ... 60 V
Switching frequency 0 ... 1200 Hz
Hysteresis 1 ... 10 typ. 5 %
Reverse polarity protection reverse polarity tolerant
Short-circuit protection pulsing
Voltage drop ≤ 5 V
Operating current 2 ... 100 mA
Lowest operating current 2 mA
Off-state current 0 ... 0.5 mA typ.
Switching state indicator LED, yellow
Functional safety related parameters
MTTFd 1476 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
Standards EN IEC 60947-5-2
Approvals and certificates
UL approval cULus Listed, General Purpose
CCC approval Certified by China Compulsory Certification (CCC)
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Mechanical specifications
Connection type cable PUR , 2 m
Core cross section 0.14 mm2
Housing material Stainless steel 1.4305 / AISI 303
Sensing face LCP
Degree of protection IP67
Dimensions
Length 40 mm
Diameter 8 mm

Classifications



System Classcode
ECLASS 13.0 27274001
ECLASS 12.0 27274001
ECLASS 11.0 27270101
ECLASS 10.0.1 27270101
ECLASS 9.0 27270101
ECLASS 8.0 27270101
ECLASS 5.1 27270101
ETIM 9.0 EC002714
ETIM 8.0 EC002714
ETIM 7.0 EC002714
ETIM 6.0 EC002714
ETIM 5.0 EC002714
UNSPSC 12.1 39121550
