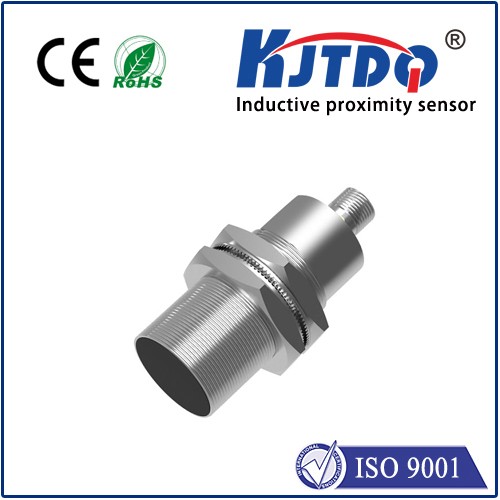

General specifications
|
|
Switching function
|
Normally open (NO)
|
|
Output type
|
PNP
|
|
Rated operating distance
|
15 mm
|
|
Installation
|
flush (Requirements: see drawing below)
|
|
Output polarity
|
DC
|
|
Assured operating distance
|
0 ... 12.15 mm
|
|
Actuating element
|
Ferrous and nonferrous targets
|
|
Reduction factor rAl
|
0.4
|
|
Reduction factor rCu
|
0.2
|
|
Reduction factor r304
|
0.85
|
|
Reduction factor rSt37
|
1
|
|
Output type
|
3-wire
|
|
Nominal ratings
|
|
Operating voltage
|
10 ... 30 V DC
|
|
Switching frequency
|
0 ... 150 Hz
|
|
Hysteresis
|
3 ... 15 typ. 10 %
|
|
Reverse polarity protection
|
reverse polarity protected
|
|
Short-circuit protection
|
pulsing
|
|
Voltage drop
|
≤ 2 V
|
|
Operating current
|
≤ 200 mA
|
|
Off-state current
|
≤ 10 µA
|
|
No-load supply current
|
≤ 15 mA
|
|
Operating voltage indicator
|
LED, green
|
|
Switching state indicator
|
LED, yellow
|
|
Functional safety related parameters
|
|
MTTFd
|
893 a
|
|
Mission Time (TM)
|
20 a
|
|
Diagnostic Coverage (DC)
|
0 %
|
|
Compliance with standards and directives
|
|
Standard conformity
|
|
|
|
Standards
|
EN IEC 60947-5-2
|
|
Approvals and certificates
|
|
UL approval
|
cULus Listed, General Purpose
|
|
CCC approval
|
CCC approval / marking not required for products rated ≤36 V
|
|
Ambient conditions
|
|
Ambient temperature
|
-25 ... 70 °C (-13 ... 158 °F)
|
|
Mechanical specifications
|
|
Connection type
|
Connector plug M12 x 1 , 4-pin
|
|
Housing material
|
Stainless steel 1.4305 / AISI 303
|
|
Sensing face
|
Stainless steel 1.4305 / AISI 303
|
|
Degree of protection
|
IP67 / IP68 / IP69K - cordset dependent according to cable specification
|
|
Dimensions
|
|
|
|
Length
|
65 mm
|
|
|
Diameter
|
30 mm
|
