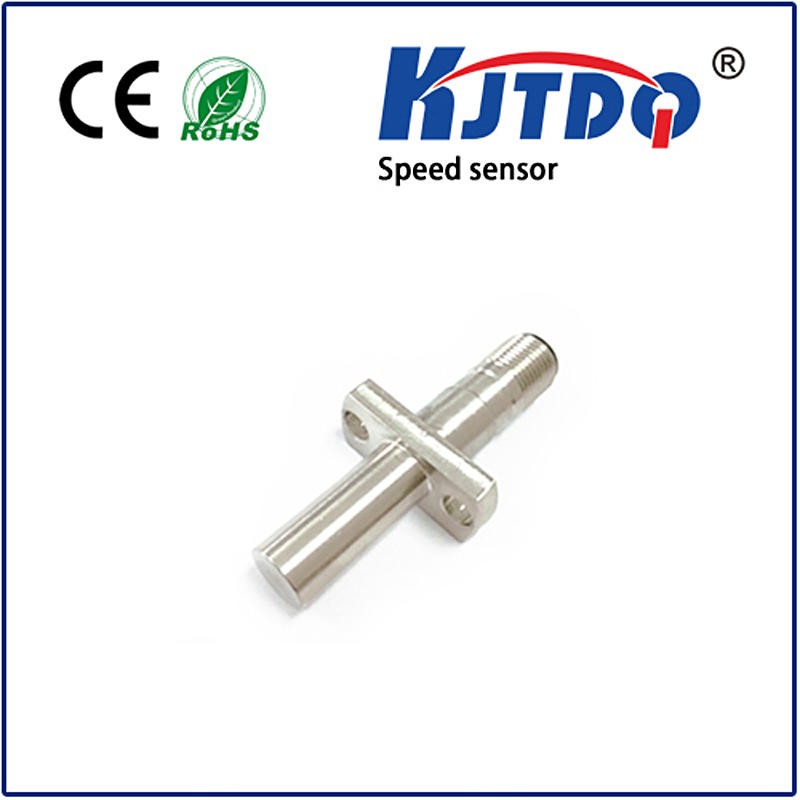

The KJT D12A series Differential Hall-Effect Speed sensors are suitable, in conjunction with a ferrous pole wheel, for generating square wave signals proportional to rotary speeds. The D12A exhibits a static function, whereby pulse generation down to 5 Hz is guaranteed.
|
Technical parameter |
|
|
Signal Output |
Square Wave signal from push-pull output stage, DC-coupled to the supply, 30 mA max. load current |
|
Thread Length |
1.0" M12x1 thread |
|
Supply Voltage |
8-32VDC |
|
Maximum current consumption |
15 mA (without load) |
|
Frequency Range |
5-20 kHz |
|
Housing |
M12x1 |
|
Tightening Torque |
max 12 Nm |
|
Connection |
Connector, M12x1 thread, 4 pins, black |
|
Operating Temperature |
-104-257°F (-40-125°C) |
|
Protection |
IP68 (Sensor) / IP67 (Cable) |
|
Insulation |
housing and electronics galvanically isolated (Test: 500V, 50 Hz for 1 minute) |

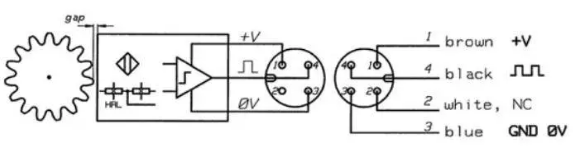

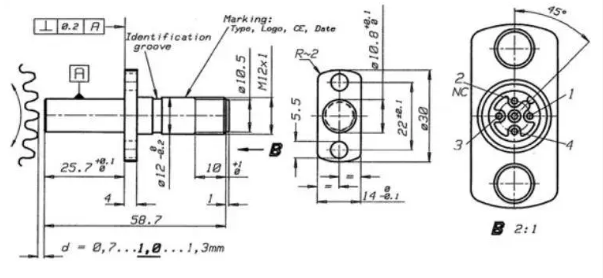

Wiring diagram
