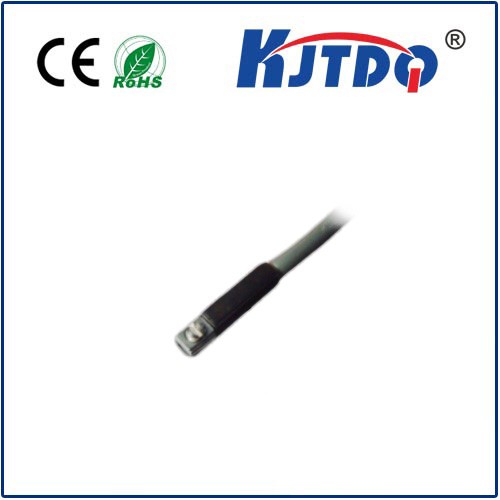

KJT-02P magnetic switch magnetic sensor cylinder sensor

  • ●Non-contact electronic switch, precise positioning, fast response, the switch will not malfunction or have no action:
  • ●High durability, impact resistance and vibration resistance:
  • ●Ultra-high protection level IP67, with good waterproof, dustproof and oil-proof capabilities:
  • ●Adopting injection molding one-piece molding process, the structure is reinforced, firmly fixed, comparable in appearance, and highly durable.:
  • ●Compatible with 99.99% of cylinder types on the market, and suitable for all tie rod cylinders, meter cylinders, and circular cylinder switches:
  • ●The wire is resistant to bending and does not deform under 14 kg of pulling force.:
  • Product Detail

KJT magnetic switch cylinder is used to detect the position of the cylinder stroke. There is no need to install brackets at both ends of the stroke. It is easy to install, easy to use and has a compact structure. Reliable, high durability, low cost and fast switching response time. Widely used in various mechanical equipment.

  ●A variety of models are available to suit various occasions;

  ●The wires are made of oil-resistant PVC material with high protection level.

1


Switching logic

Electronic type without contacts; normally open type

Induction switch type

Non-contact transistor NPN type

Operating voltage range

5~30VDC

Maximum switching current

200mA Max.

Maximum contact capacity

6W Max.

Internal current consumption

14mA Max.@24V

Residual voltage drop

2.5V Max.@10mA DC

Leakage current

0.01mA Max.

Indicator light

Red LED

 Cable

φ2.8,2C/Gray oil-resistant PVC

Maximum switching frequency

1000Hz

Operating temperature range

-10℃~70℃

Impact resistance

50G

Vibration resistance

9G

Waterproof level

lP67

protection circuit

power supply polarity reverse protection; surge absorption protection

尺寸图


磁力传感器尺寸图

接线图


磁力传感器接线图
