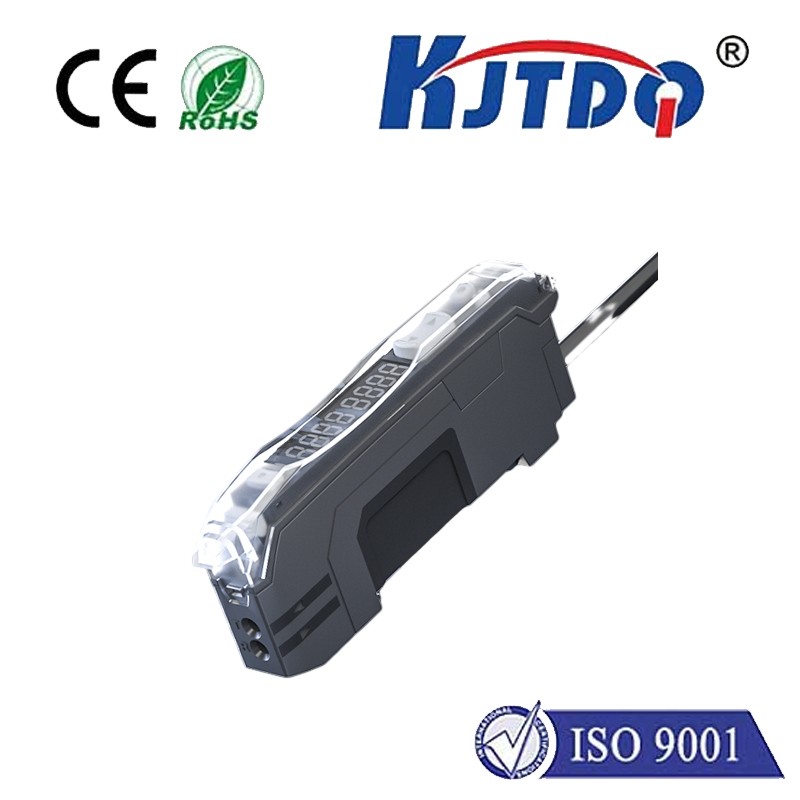

KJT-FDQ-XV31 Fiber Amplifier

Fiber optic amplifier

KJT-FDQ-XV31 Fiber Amplifier

  • Product Model:KJT-FDQ-XV31
  • Light source:Red, 4-Element Light Emitting Diode
  • Respond time:P-1:200 µs /P-2:400 µs/P-3:1.6ms/P-4:6.4ms
  • Power supply voltage:12 to 24 VDC ±10 %、ripple (P-P) 10 % or less
  • Current consumption:40mA max.
  • Detection method:Luminous intensity
  • Product Detail

It is a high-performance optical fiber sensor suitable for detecting small objects and small color differences, and is suitable for installation in small spaces and adverse environments. ◆ The optical fiber detection head is small and suitable for installation in small spaces. The optical fiber head can be used in situations with large electromagnetic interference, large temperature differences, large humidity, and explosion-proof situations. Works reliably in adverse environments. ◆Easy to operate, adjustable sensitivity

主要技术参数

Model

KJT-FDQ-XV31

Light source

Red, 4-Element Light Emitting Diode

Respond time

P-1:100 µs /P-2:400 µs/P-3:1.6ms/P-4:6.4ms

Power supplyvoltage

12 to 24 VDC ±10 %、ripple (P-P) 10 % or less

Current consumption

40mA  max.

Display instructions

Operation indicator: red LED, dual digits Monitor: dual 4-digit display, threshold (4-digit green LED

body indicator) and the current value (4-digit red LED body indicator) light up together. Current value range: 0-9999

Delay function

Off delay timer/on delay timer/single timer/on delay one time timer, selectable.

Meter display in duration selectable: 1ms to 9999ms

Detection method

Luminous intensity

Control output

NPN/PNP open collector 24V, max. 100mA (main unit only) max. 20mA (when extension unit is connected, residual voltage: 1V)

Protection circuit

Power supply and output reverse connection protection, output overcurrent and short circuit protection

Operating environment

Incandescent: max. 20,000 lux, daylight: max. 30,000 lux

Ambient temperature

-10 to +55°C (no freezing)

Relative humidity

-35 to 85 % RH (no condensing)

Vibration resistance

10 to 55 Hz, dual amplitude 1.5 mm, 2 hours each in X, Y, Z directions

Impact resistance

The X, Y and Z axis directions are 500m/, 3 times in each direction

Shell material

polycarbonate

Weight

about 75 g


尺寸图

3

接线图

2

场景图

5
