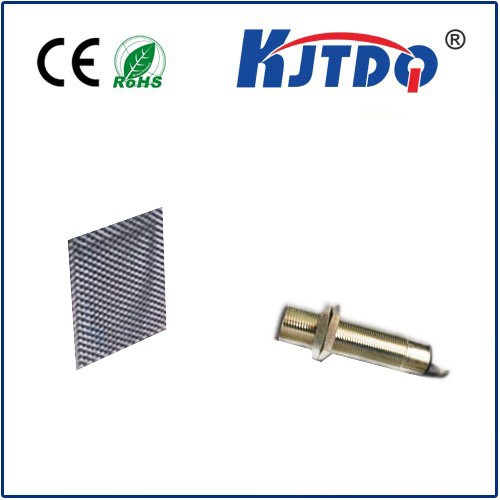

Kaijit photoelectric speed sensor is a multi-functional photoelectric speed sensor product independently developed and produced. It integrates photoelectric conversion circuit, amplification circuit, logic processing circuit and drive output circuit. Compared with similar foreign products, it has the advantages of more functions and low price. Compared with similar domestic products, it has the characteristics of fast response, high precision and stable quality. Suitable for robots, automated production lines, lathes, manipulators and robotic arm components, food processing equipment, printing equipment and other industrial machinery and equipment.
|
Detection form Y: Retroreflective type (with reflective paper)
|
10cm
|
|
MODEL
|
D C
|
NPN
|
NO
|
KJT-FTJ18-ZNK
|
|
NC
|
KJT-FTJ18-ZNB
|
|
NO＋NC
|
KJT-FTJ18-ZNKB
|
|
PNP
|
NO
|
KJT-FTJ18-ZPK
|
|
NC
|
KJT-FTJ18-ZPB
|
|
NO＋NC
|
KJT-FTJ18-ZPKB
|
|
Contact output
|
|
AC
|
NO
|
KJT-FTJ18-JK
|
|
NC
|
KJT-FTJ18-JB
|
|
NO＋NC
|
|
|
Rated operating voltage (ripple peak value <=15%) [V]
|
DC
|
10...36V
|
|
AC
|
20...250V
|
|
response frequency
|
1.5kHz
|
|
Operating ammeter transistor/thyristor/relay [mA]
|
200mA/400mA
|
|
Response time [ms]
|
<3
|
|
pointing angle
|
3°...20°
|
|
Voltage drop transistor/thyristor/relay
|
<1.5V/6V
|
|
Current consumption [ms]
|
<=20
|
|
Differential distance
|
<15%
|
|
Polarity protection ▲ Short circuit protection ■
|
▲■
|
|
action instructions
|
|
|
Working environment illumination LUX
|
incandescent lamp (light receiving surface illumination)
|
<=3000
|
|
Sunlight (light receiving surface illumination)
|
<=10000
|
|
Working environment temperature [℃]
|
-25...+55
|
|
Shell material
|
brass chrome plated
|
|
Connection method Y: Lead wire J: Internal wire C: Plug-in
|
Y C
|
|
Protection level
|
IP65
|
|
Standards compliant
|
GB/T14048.10
|
配件：
反光纸
