KJT photoelectric switch is through the change of light intensity into an electrical signal to achieve control.KJT photoelectric switch product range is complete, diffuse reflection type, mirror reflection type, counter-reflective type, cylindrical, square, groove type, relay output, etc. KJT standard photoelectric switch product range is complete, diffuse reflection type, mirror reflection type, counter-reflective type, long-distance type, intelligent type, relay output type, anti-interference, stable performance, comprehensive your needs. Stable, fully meet your needs.

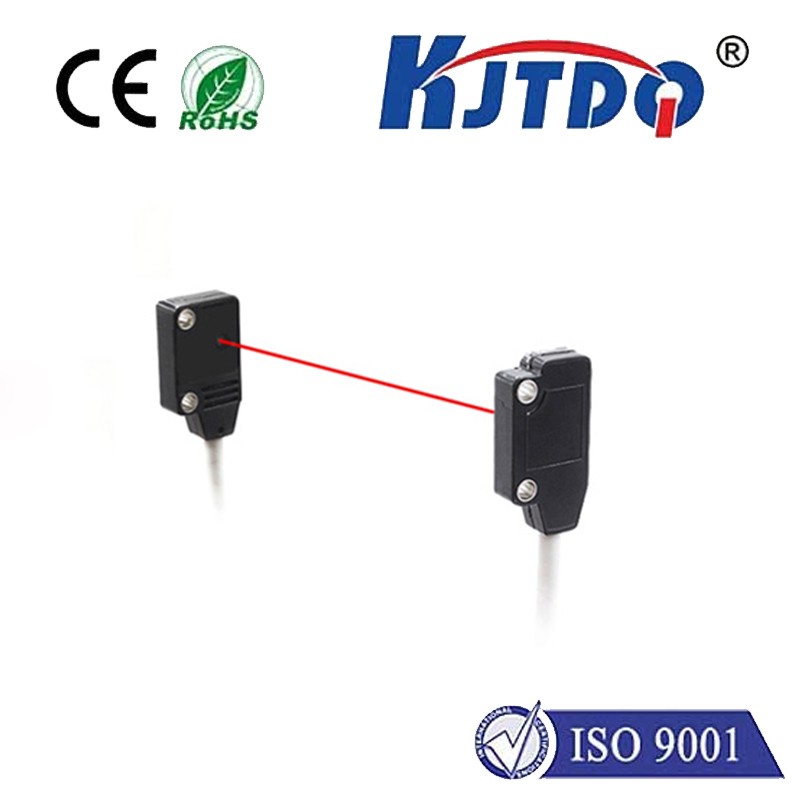

Product type	KJT-FQ
Detection distance	150mm/300mm
Minimum Detected Objects	Opaque Objects：1 mm
Shell material	denatured polyaromatic resin (DPR)
Supply Voltage	12~24V DC pulsation (P-P) ±10% max
Consumption Current	Light Receiver:20mA, Light Thrower:10mA
Response time	0.5ms max
Light source	Infrared light (680nm)
Load supply voltage	30V DC max.
Load supply current	50mA max.
Insulation resistance	200mΩ min. (DC500V)
Withstand voltage	AC1,000V   50/60Hz min
Vibrations	10-500Hz Bi-amplitude 3 mmX, Y, Z 2h in each direction
Impact	500m/s²X、Y、Z 3 times in each direction.
Short circuit protection	Yes
Operating temperature	-25°C- 55°C
Environmental humidity	35 to 85% RH
Suitable for intensity light	≤5.000Lux max.
Protection level	IP67
Accessories	M2*8 screws, spring washers, flat washers
