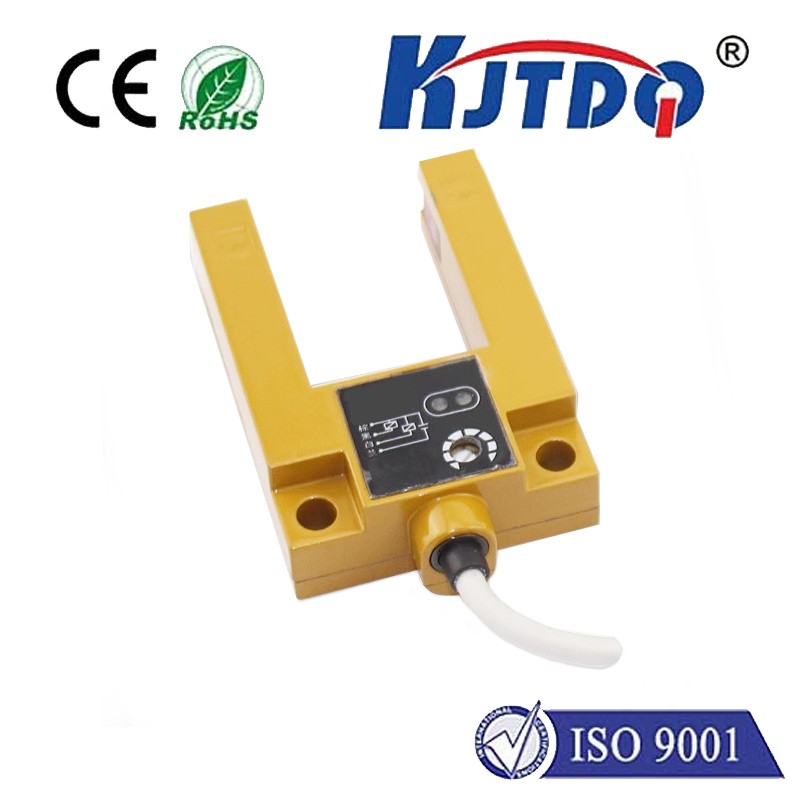

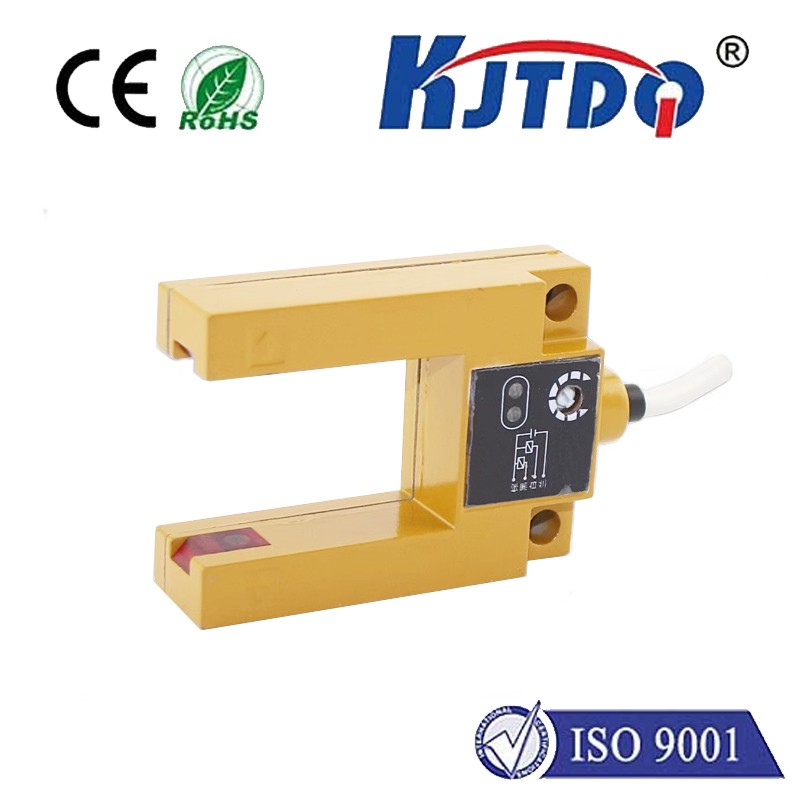

KJT-FU30 Photoelectric Sensor

Slot type Photoelectric sensor

KJT-FU30 Photoelectric Sensor

  • ●:Protection structure IP65
  • ●:Response frequency up to 2kHZ
  • ●:Standard 4 wire, NO/NC switchable
  • ●:Standard use of twist-resistant conductors
  • ●:Reverse power supply, output short circuit protection
  • ●:M3 screws for easy installation
  • Product Detail

KJT slot photoelectric switch is actually one of the counter-reflective photoelectric switch, also called U-type photoelectric switch, is an infrared sensing photoelectric products, by the infrared transmitting tube and infrared receiving tube combination, and the slot width determines the induction of the receiving model of the strength of the received signals and the distance to the light as a medium.

主要技术参数


Model KJT-FU30
Reflection type through beam type
Sensing distance 30mm
Output NPN/PNP NO
Power supply voltage 10…30V DC/20-250V AC
Working current 200mA/400mA/3A
Response time ≤3ms
Pointing angle 3°..20°
Voltage drop 1.5V
Polarity protection yes
Short circuit protection yes
Working environment illumination incandescent lamp ≤ 3000lux, sunlight ≤ 10000lux
Ambient temperature -25-+55℃
Shell material ABS/PBT
Protection class IP65
