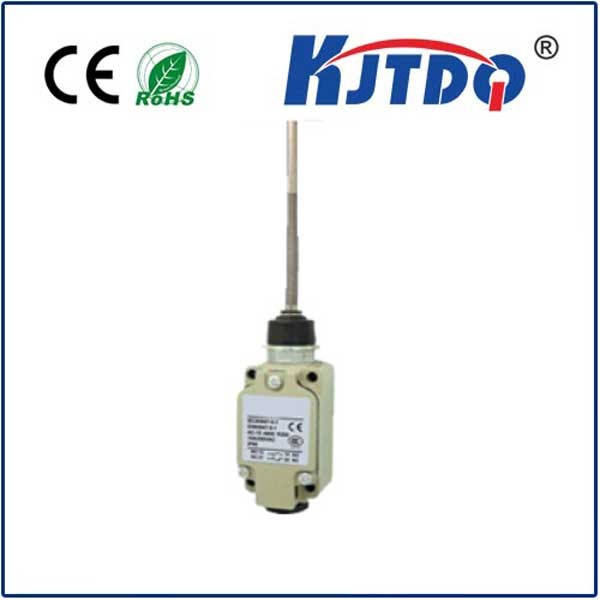

KJT-KB-5168 Standard lever travel limit switch

Standard Limit switch

KJT-KB-5168 Standard lever travel limit switch

  • Structural features:Double-circuit limit switch, built-in contact seat with double reed design, long mechanical life
  • Shell material:Rugged one-piece cast aluminum alloy housing with high mechanical strength
  • Protection level:IP66 protection, oil-resistant, waterproof and pressure-proof structure
  • internal structure:The built-in contact base has a double reed design and is equipped with a set position indicator board, so it is easy to maintain. There are many types of switches, which are convenient to use and have a wide range of uses
  • Product Detail

■Double-circuit travel switch, stable and reliable, small in size, economical and practical

■Made of aluminum alloy one-piece cast housing with solid structure

■ IP66 level protection, waterproof, oil-proof and dust-proof structure;

■ The built-in micro switch has a double reed design structure and has a long mechanical life.

■ Suitable for application scenarios with a lot of mist and water vapor

1


Rated voltage  15A 250VAC
operating speed  1mm~2m/s
operating frequency Mechanical: 120 times/min
Electrical: 30 times/min
Contact resistance 15mΩ or less
Insulation resistance  100Ω or more (below 500VDC)
Withstand voltage  Between discontinuous terminals: 1,000VAC, 50, 60Hz for one minute
Between terminal and ground: 2,200VAC, 50, 60Hz for one minute
 Between terminal and no-carrying current metal: 2,200VAC, 50/60Hz for one minute
vibration  Action durability: 10~55Hz, 1.5mm double amplitude
impact  Mechanical durability: more than 1000m/s2 (about 100G or more)
Malfunction durability: 300m/s2 or more (about 30G or more)
Use ambient temperature  -10~+80 ℃
humidity  Maximum 95%RH
Service life  Mechanical: more than 15 million times   Electrical: more than 500,000 times
Protection level  IEC:IP66
weight  About 258g


Model
KB-5101 KB-5102
KB-5103
KB-5104 KB-5107 KB-5108 KB-5109 KB-5106
KB-5166
KB-5168
KB-5169
KB-5105
Max OF 2720g 2720g 1000g 1420g 1360g 2720g 150g 1200g
Min RF 910g 910g 227g 280g 227g 910g - -
Max PT 1.7mm 1.7mm 20° 20° 20° 1.7mm 28mm 227g
Min OT 6.4mm 5.6mm 70° 70° 70° 4mm - 55°
MaxMD 1mm 1mm 10° 10° 10° 1mm - 35°
OP 34 ± 0.8mm 44.8± 0.8mm - - - 44.5 ± 0.8mm - 90 ± 10 °


2


5168

3


2 (4)

4

2 (1)
