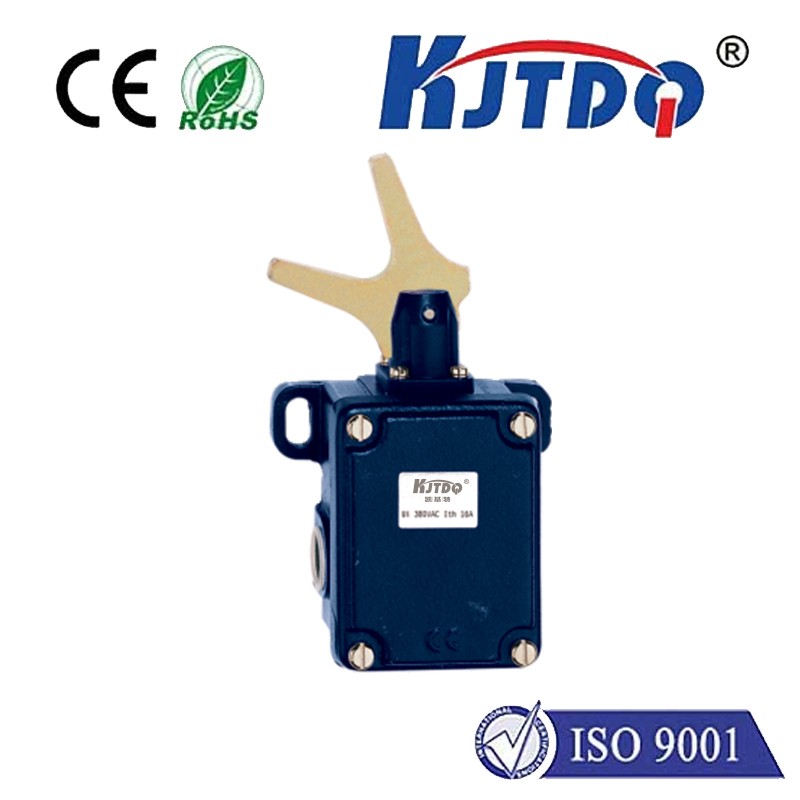

KJT-M2C 441-11Y Heavy Duty Travel Limit Switch

Limit switch

KJT-M2C 441-11Y Heavy Duty Travel Limit Switch

  • ● :2 cable entries M 20 x 1.5
  • ● :metal shell
  • ● :with locked end position
  • ● :Actuator head repositionable 4 x 90°
  • ● :Change the direction of execution by repositioning the actuator head
  • ● :106mm x 99mm x 63mm (basic assembly)
  • ● :case hardened lever
  • ● :Protection grade IP65
  • Product Detail

 KJT heavy-duty limit switch is a mechanical control switch, which is used for conveyor belt deviation prevention, crane over-roll protection, and rope pull switch. Taking advantage of its high reliability, it is widely used in steel equipment, large conveying machinery, loading and unloading machinery and cement equipment. Resistant to harsh environments. The glass sealed contacts are filled with inert gas and are not affected by the environment. Resistant to vibration, impact, and wide range of applications.

1


Product parameters
model M2C 441-11Y
Principle of action Mechanical
Shell raw materials Gray cast iron, galvanized
Contact material silver
gross weight 1,524g
Normally closed quantity (NC) 1
Normally open quantity (NO) 1
B 10D normally closed contact (NC) 2,000,000 operations
operating units Fork rod
Mechanical life 5,000,000operations
contact open circuit 2×2.5mm
Minimum drive speed 1mm/min
Maximum action speed 0.5m/sec
Notice Action speed: Driving speed of the vertical drive angle switching axis
Circuit connection Screw connection M20 x 1.5
Minimum cable cross-section 1.5mm²
Maximum cable cross section 2.5mm²
Notice Cable part: including conductor ferrules
Wire cross section 13 AWG
Product Size
length, width and height 63mm*106mm*194mm
Application environmental conditions
Protection level IP65
ambient temperature -30 ... +90°C
Rated insulation voltage 250 VAC
Rated impulse withstand voltage 4kV
Electrical data
Thermal test current 16A
Application categories AC-15: 250 V / 4 A
switching element Normally open contact, normally closed contact
Switching principle quick action
Maximum bounce duration 5 ms
Maximum switching time

35 ms

Precautions
Starting from the right side should be avoided as this shortens the mechanical life of the position switch


2


2a03b78288c889fc6e3b448fe5c62f83_DIM_PRO_ACT_1t422b06_SALL_AINL_V2

9cd460808b3f88f7c028b41f2ece0ea1_DIM_PRO_BAS_1t441g01_SALL_AINL_V2

3



7afb37f6ce21487d611768048d48ae7c_DIA_PRO_TRA_kt441s11_SALL_AINL_V2


NOTE Switch travel diagram

触点闭合  Contact closed

触点打开  Contact open

设置范围  Set range

断点  breakpoint

肯定打开顺序/角度  Definitely opening order/angle

VS   NO contact adjustment range

  NC contact adjustable range

N   After the trip
