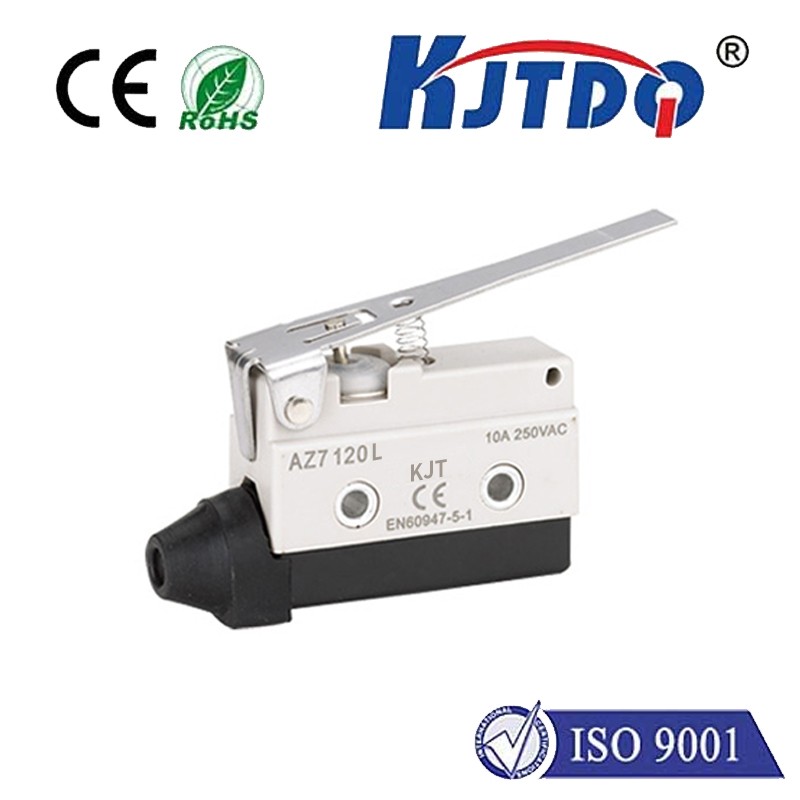

KJT Micro Switch Short Push Plunger Type AZ7120L

Limit switch

KJT Micro Switch Short Push Plunger Type AZ7120L

  • ●:There are many types of actuators, the action position can be adjusted
  • ●:Shell covered with reinforced plastic, waterproof and oil-proof
  • ●:Type micro switch has higher mechanical strength and impact resistance
  • ●:There are many categories of forward moving machines, and the action position is adjustable.
  • Product Detail

 There are many types of actuators, and they are designed with adjustable action positions. The shell is covered with reinforced plastic, waterproof and oil-proof. Type micro switch has higher mechanical strength and impact resistance. There are many categories of forward moving machines, and the action position is adjustable. The outer shell is covered in plastic, which is water- and oil-resistant and can withstand a beating.

1


Rating

rated voltage

non-inductive load

Non-electrical portability

Inductive load (A)

resistive load

drag paddle

Bulb load

light bulb carry

inductive load

electric

carry

Motor load

Motor portability

CNC NO CNC NO CNC NO CNC NO
125 V AC
250V AC
480V AC
10
       10
       3
3
       2.5
       1.5
1.5
       1.25
       0.75
10

10 2.5
5

3 1.5
2.5
       1.5
       0.75

8V DC

14V DC

30V DC

125V DC

250V DC




10
6
8 0.5

0.25
3
3
3 0.4

0.2
1.5 1.5

1.5 0.4

0.2
6
6
6 0.05

0.03
6
6
5 0.05

0.03
5 5

2.5
0.05
0.03



Note:

1. Inductive load: power factor = 0.4, time constant = 7 milliseconds.

2. The inrush current of the bulb load is 10 times of the steady state. The inrush current of the motor load is 6 times the steady state current.

Remark:

1. Electrical load carrying capacity: power factor = 0.4. Time constant = 7 milliseconds.

2. The current carried by the light bulb is 10 times that of the steady state. The current carried by the motor is 6 times that of the steady state.


  Features

operating speed 0.01 mm to 50 cm/sec (locking plug type)
Action frequency
120次/minute
Action frequency 15MΩ or less
Insulation resistance 100MΩ or more (below 500V DC)
voltage 1,000VAC, 50/60Hz for 1 minute between non-continuous terminals, 1,500VAC, 50/60Hz for 1 minute between carrying and unloaded current parts and between terminals and ground.
vibration Action: 10 to 55Hz, 1.5mm dual amplitude
impact

Mechanical durability: 1,000m/sec2 (about 100G, S)

Malfunction durability: 300m/Sec2 (about 30G, S)

ambient temperature use: -10 to +80°C
Humidity Above 95% relative humidity
service life Mechanical: 10,000,000 times or more (under rated OT value) Electrical: 500,000 times or more
weight 60g
Protection level IEC specification: IP65
