KJT-WJ12 Analog displacement sensor

Measuring sensor

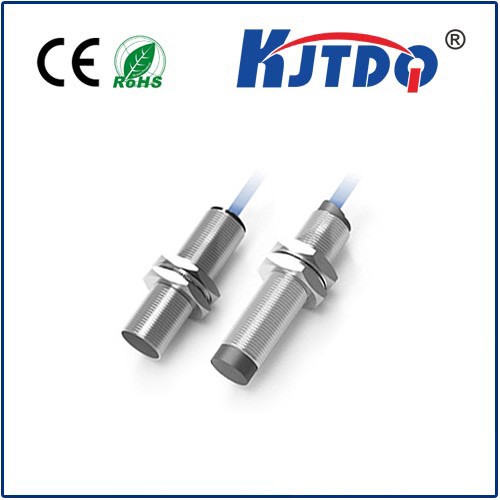

KJT-WJ12 Analog displacement sensor

  • ●:Suitable for detecting displacement, position and distance of metallic conductive materials
  • ●:Customer-customizable inductive ranging sensors and controllers
  • ●:Suitable for use in industrial environments: resistant to high temperature, high pressure, and dust
  • ●:Industrial grade rugged structural design
  • ●:Ultra-high resolution and temperature stability
  • ●:A variety of eddy current probes are available to suit various application requirements.
  • ●:Ultra-high measurement frequency meets real-time requirements
  • ●:Suitable for automation equipment integration
  • Product Detail

 When a metal object approaches the sensing surface of the analog sensor, the LC oscillation of the analog sensor is attenuated. This change is used to convert the current output. The size of the output current is directly related to the distance between the metal object and the sensing surface of the analog sensor. Or directly proportional to the relationship (please refer to the relationship between proximity distance and output current curve).

Standard detection object: Use 1mm thick square steel sheet, electrical soft iron (i.e. A3 steel) whose side length is equal to the diameter of the sensing surface of the analog sensor.

Inductive proximity sensors with analog output are electronic signal generators for measuring position deviations and are used in a wide range of applications.

For example:

1.Measurable bending and deflection

2.Measurable width height

3. Controllable dimensional stability

4. Controllable positioning

5. The centering rate or eccentricity can be controlled

1

Model
KJT-WJ18A KJT-WJ18B KJT-WJ18C KJT-WJ18D
Installation type Flush
Non-Flush
Flush
Non-Flush
Sensing distance 1…4mm 0…7mm 7…20mm 7…20mm

Relationship between distance and output

current

See graph See graph See graph See graph
Wiring diagram PNP PNP PNP PNP
connect φ5 Dingqing extrusion line 2M φ5 Dingqing extrusion line 2M φ5 Dingqing extrusion line 2M Built-in binding posts
Foreign product replacement models R-AIPM/XVP DPA-4 BAW030-PF-1-K BI15-CP40-LU

Remark:

   1. For other technical data, please contact us.

   2. The standard detection bodies of various analog sensors are close to the sensing surface. Under specified conditions, their usable distance is proportional to the output current. Please refer to the prepared curve chart for details

of each curve.



2

3

WJ30 (6)

4

WJ30 (1)

WJ30 (2)

WJ30 (2)

忘记0

WJ30 (4)

WJ30 (3)

WJ30 (5)

WJ30 (1)
