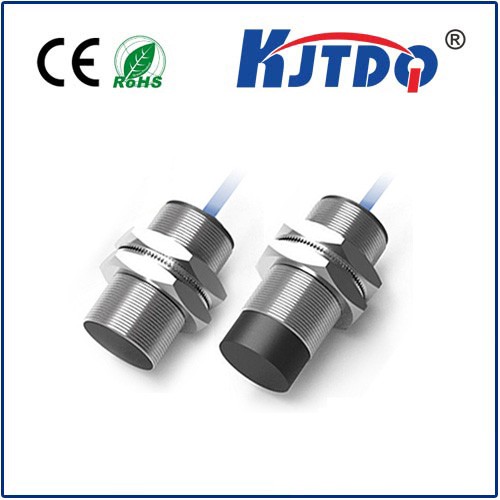

KJT-WJ30 Analog displacement sensor

Measuring sensor

KJT-WJ30 Analog displacement sensor

  • Product Detail
Model KJT-WJ30A KJT-WJ30B KJT-WJ30C KJT-WJ30D
Installation type Flush Non-Flush Non-Flush Non-Flush
Sensing distance 5…10mm 0…7mm 7…20mm 7…20mm

Relationship between distance

and output curren

See graph See graph See graph See graph
Wiring diagram PNP PNP PNP PNP
connect φ5 Dingqing extrusion line 2M φ5 Dingqing extrusion line 2M φ5 Dingqing extrusion line 2M Built-in binding posts
Foreign product replacement models R-AIPM/XVP DPA-4 BAW030-PF-1-K BI15-CP40-LU

Remark:

   1. For other technical data, please contact us.

   2. The standard detection bodies of various analog sensors are close to the sensing surface. Under specified conditions, their usable distance is proportional to the output current. Please refer to the prepared curve chart for details

of each curve.
