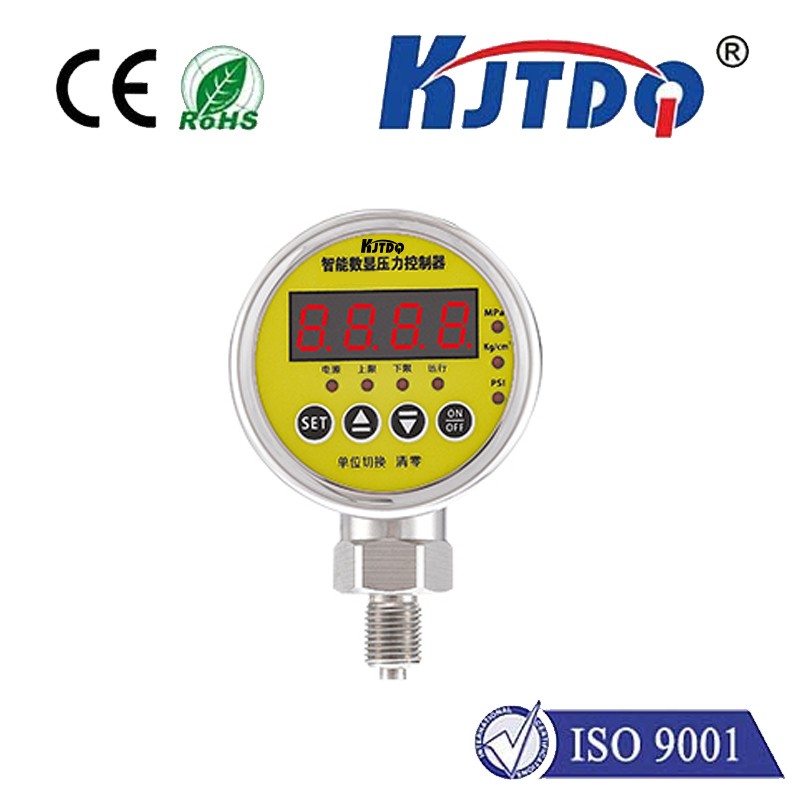

KJT-Z1220C Intelligent Digital Pressure Controller

Products

KJT-Z1220C Intelligent Digital Pressure Controller

  • Overload capacity:150%
  • Sampling rate: 5 times/second
  • Measuring medium:304 stainless steel compatible media
  • Accuracy level:1%FS or 0.5%FS
  • Operating temperature:-20-80℃
  • Alarm point:Full range arbitrarily set
  • load capacity:380V/3A、 220V/5A、24V/5A
  • Display method:High brightness LED digital tube
  • output signal:Passive switching value 4-20mA
  • Product Detail

1

KJT-Z1220C Intelligent Digital Pressure Controller can realize the control function of low pressure stop, high pressure start or low pressure start, high pressure stop Controller pressure range full range of return difference is adjustable. It has a reverse control, delay output, error clearing, unit free switching, leakage protection, password protection, automatic pressure detection and other functions. Can be widely used in hydraulic systems, boiler machinery and equipment, water treatment and other projects, pharmaceutical and chemical industries, automated machinery supporting measurement and control fields.


Type Product Description
KJT-Z1220C
Intelligent digital pressure controller
output method 1220C Dual relay output
2 NO
3
NO+NC
Transmission output 0 No output
2 4-20mA output
Accuracy Class 1 1%
2 0.5%
process connection A 20*1.5
B G1/2
D Other orders are specified
Power supply W DC24V battery powered
A
AC220V power supply
Measurement range -100kPa-60MPa Customer choice


2

12

3

111

4


12 (1)
