● There is no need to dig trenches and set up wires, which greatly reduces cable, labor costs and engineering cycles;
● Simplify engineering design and reduce designers’ workload (especially cable routing);
● Affected by natural terrain such as bridges, rivers, mountains, etc., cables cannot be laid arbitrarily;
● According to the increase of detection points, a private data collection network can be quickly established, with flexible and convenient expansion;
● When a fault occurs, the detection points are concentrated, eliminating the cumbersome tasks encountered in the past when inspecting along the line.
Characteristics |
|
|
1mm to 2m/S |
|
Mechanically:120 times/minute Electically:30 times/Minute |
|
Under 15mΩ(initial) |
|
100MΩ以上(500VDC) 100mΩ above (at 500VDC) |
|
|
|
Action:10 to 55Hz,1.5mm pairs swing |
|
|
|
use: -10to +80℃ |
|
Max 95% RH |
|
|
|
About 258g |
|
IEC specification:IP66/IP67 |
Model |
KJT47CSZK-01 |
KJT47CSZK-02 KJT47CSZK-03
|
KJT47CSZK-04 | KJT47CSZK-07 | KJT47CSZK-08 | KJT47CSZK-09 |
KJT47CSZK-06 KJT47CSZK-66 KJT47CSZK-68 KJT47CSZK-69 |
KJT47CSZK-05 |
Max OF | 2720g | 2720g | 1000g | 1420g | 1360g | 2720g | 150g | 1200g |
Min RF | 910g | 910g | 227g | 280g | 227g | 910g | - | - |
Max PT | 1.7mm | 1.7mm | 20° | 20° | 20° | 1.7mm | 28mm | 227g |
Min OT | 6.4mm | 5.6mm | 70° | 70° | 70° | 4mm | - | 55° |
MaxMD | 1mm | 1mm | 10° | 10° | 10° | 1mm | - | 35° |

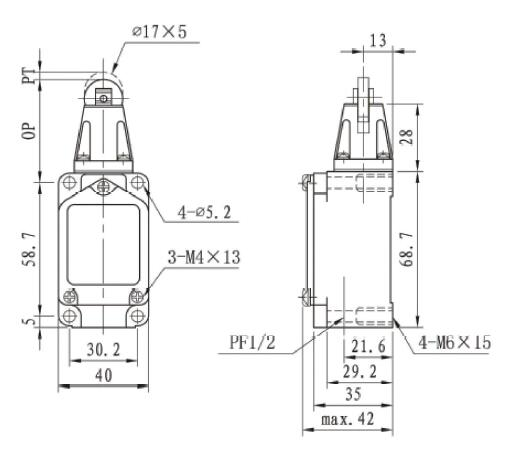

OP | 34 ± 0.8mm | 44.8± 0.8mm | - | - | - | 44.5 ± 0.8mm | - |
90 ± 10 ° |
