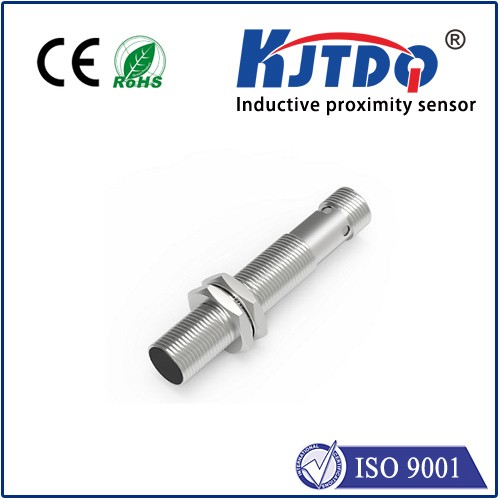

M12 Flush Inductive Proximity Sensor equivalent to BES00PY

Standard inductive proximity sensor

M12 Flush Inductive Proximity Sensor equivalent to BES00PY

  • Product Model:KJT-J12M
  • Installation method:Flush
  • Sensing distance:2mm
  • operating voltage:10-36VDC / 90-250VAC / 20-250VAC
  • output method:Multiple output methods
  • environmental temperature:-25℃~+70℃
  • outlet:Connector, M12x1 male, 3-pin
  • Product Detail

KJT standard proximity switch has reliable action, stable performance, fast frequency response, long service life and strong anti-interference ability, and is widely used in machine tools, metallurgy, chemical industry, textile and Print industries. Product dimensions, cables, and detection distances can all be customized.

1



Product Model
KJT-J12M
Installation method Flush
Detection distance
2mm
Working temperature
-25℃~+70℃
Specifications M12*1*50
Operating Voltage
10-36VDC / 90-250VAC / 20-250VAC
Ripples <10%
No-load current <10mA
Maximum load current 200mA
Voltage drop ≤1.5V
On-off level 1000Hz
Hysteresis <15(Sr)
Overload protection current 180mA
Short circuit protection YES
Repeat accuracy <3.0%(Sr)
Temperature drift <10%(Sr)
Response time 0.5ms
Connection method Connector, M12x1 male, 3-pin
Protection level IP67
Sensing surface material PBT
Shell Material Nickel plated copper
EMC RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2


2

M12-50


3

接线图

4


9
