Nanjing KJT Electric Co,.LTD

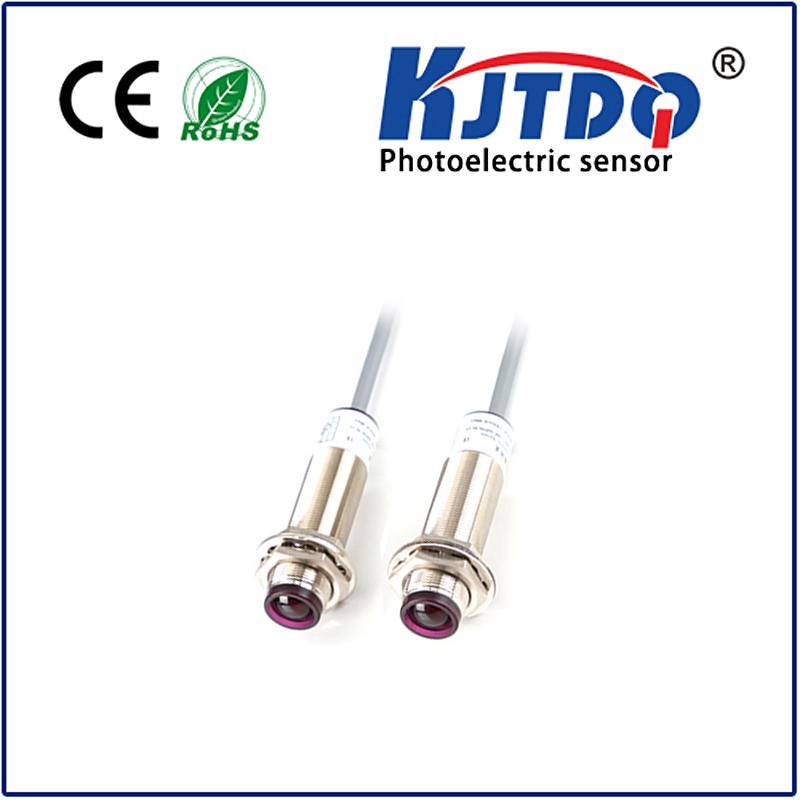

KJT’s photoelectric sensors are widely used in packaging machinery, automatic door systems, and a large number of industrial applications. The sensors are divided into diffuse reflection type, reflector type and opposite reflection type. KJT's sensors have a variety of enclosure materials that make them suitable for industrial cleaning environments.
| Technical parameter | |

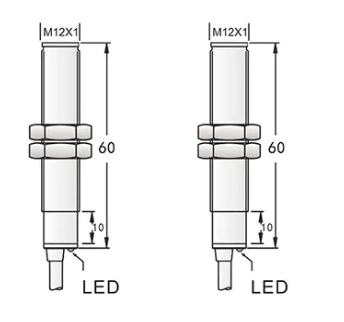

| Size | M12*60mm |
| Reflection mode | Through beam |
| Sensing Distance SN [m] | 5m |
| Housing material | Brass nickel plated |
| Operating voltage | 10-36VDC |
| Switching Hysteresis | <15% |
| Light source | Infrared light(880nm) |
| Max Current Output | 200mA |
| No Load Current | <30mA |
| Voltage Drop | <2.5V |
| Leakage Current | <1.8mA |
| Sensitivity Control | Trimmer 1tum |
| Response Time | 5ms |
| Short Circuit Protection | YES |
| Electricity Protection | YES |
| Operating Temperature | 0-55℃ |
| Ambient Humidity | 35-85%RH |
| Protection Degree | IP67 |
| Sensing Object Size | 20*500px White board |
| Connection | PVC Cable 2M |

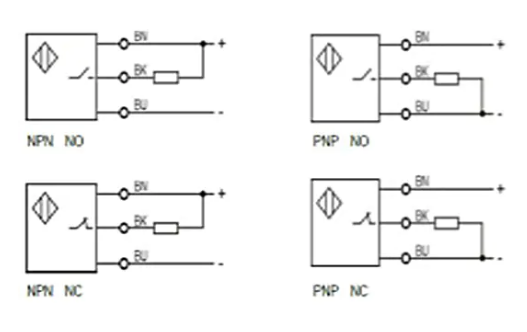

Wiring diagram
