KJT All-Metal proximity switch detects various metal objects, fast, no contact, extremely long life, reliable action, stable performance, fast frequency response, long service life, strong anti-interference ability, waterproof, shockproof, corrosion resistance and other characteristics . The integrated stainless steel shell including the sensing surface is absolutely free from any liquid or gas (cannot corrode stainless steel) during the entire working period. The material at the sensing surface is relatively thick, so it has better pressure resistance. The full metal housing makes them more mechanically resistant than traditional sensors. Therefore, it overcomes the weakness of traditional inductive sensors that are easily damaged.

● Detect various metal objects	DC 2 NO
● With surge, overload, short circuit and reverse polarity protection functions	DC 2 NC
● Shell material: Nickel copper alloy	DC 3NPN NO
● Protection grade IP67(IEC)	DC 3NPN NC
● Ambient temperature:-25℃~+70℃	DC PNP NO
	DC 3 PNP NC
	AC 2 NO
	AC 2 NC

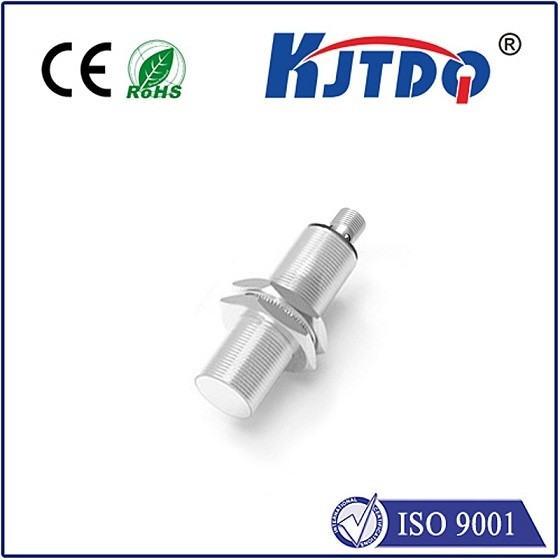

Product Model	KJT-J18MQS
Installation method	Flush
Detection distance	5mm/8mm
Working temperature	-25℃~+70℃
Specifications	M18*1*55
Operating Voltage	10-36VDC / 90-250VAC
Ripples	<10%
No-load current	<10mA
Maximum load current	200mA
Voltage drop	≤1.5V
On-off level	250Hz
Hysteresis	<15(Sr)
Overload protection current	180mA
Short circuit protection	YES
Repeat accuracy	<3.0%(Sr)
Temperature drift	<10%(Sr)
Response time	0.5ms
Connection method	Connector M12,4-pin
Protection level	IP67
Sensing surface material	Stainless steel
Shell Material	Stainless steel
EMC	RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/Vibration	IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2
