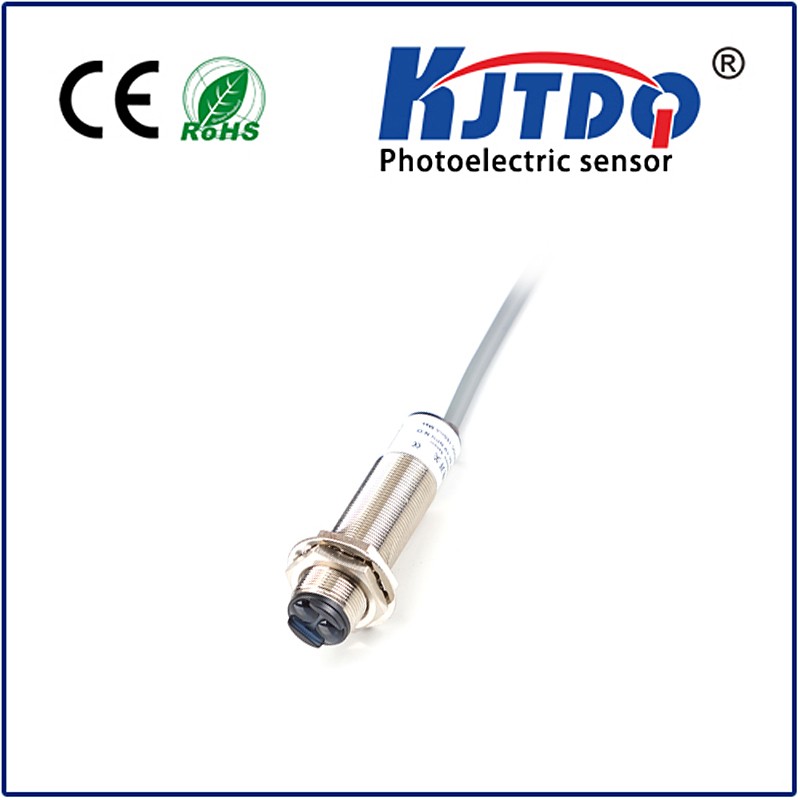

M18 Laser Photoelectric Sensor (Diffuse Reflective) equivalent to E3FA-DN22

Cylindrical Photoelectric sensor

M18 Laser Photoelectric Sensor (Diffuse Reflective) equivalent to E3FA-DN22

Photoelectric sensor, M18 threaded barrel, plastic, red LED, diffuse, 300 mm, NPN, Light-ON/Dark-ON, M12 connector
  • Product Detail

Specifications

Shape Cylindrical axial
Sensing method Diffuse reflective
Sensing distance 300 mm
Setting method Manual adjustment
Connection method Connector M12
Output type NPN
Operation mode Dark-ON, Light-ON
Response time 0.5 ms
Material housing ABS
Thread size M18
Product Length (unpacked) 45 mm
Type of light Polarity free red light
Power supply voltage 10-30 V
Degree of protection (IP) IP67/IP69K
