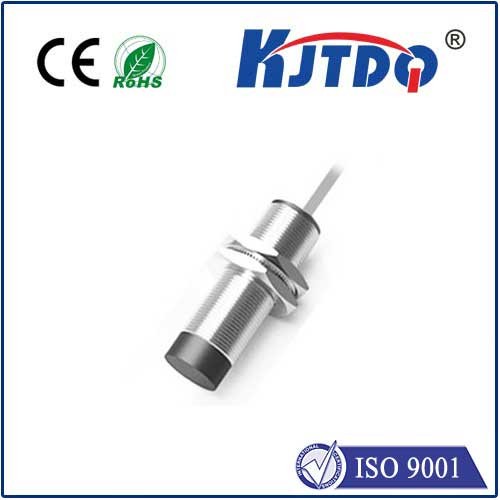

KJT standard proximity switch has reliable action, stable performance, fast frequency response, long service life and strong anti-interference ability, and is widely used in machine tools, metallurgy, chemical industry, textile and Print industries. Product dimensions, cables, and detection distances can all be customized.



Product Model	KJT-J18
Installation method	Non-Flush
Detection distance	8mm
Working temperature	-25℃~+70℃
Specifications	M18*1*55
Operating Voltage	10-36VDC / 90-250VAC / 20-250VAC
Ripples	<10%
No-load current	<10mA
Maximum load current	200mA
Voltage drop	≤1.5V
On-off level	1000Hz
Hysteresis	<15(Sr)
Overload protection current	180mA
Short circuit protection	YES
Repeat accuracy	<3.0%(Sr)
Temperature drift	<10%(Sr)
Response time	0.5ms
Connection method	2M PVC Leads
Protection level	IP67
Sensing surface material	PBT
Shell Material	Nickel plated copper
EMC	RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/Vibration	IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2
