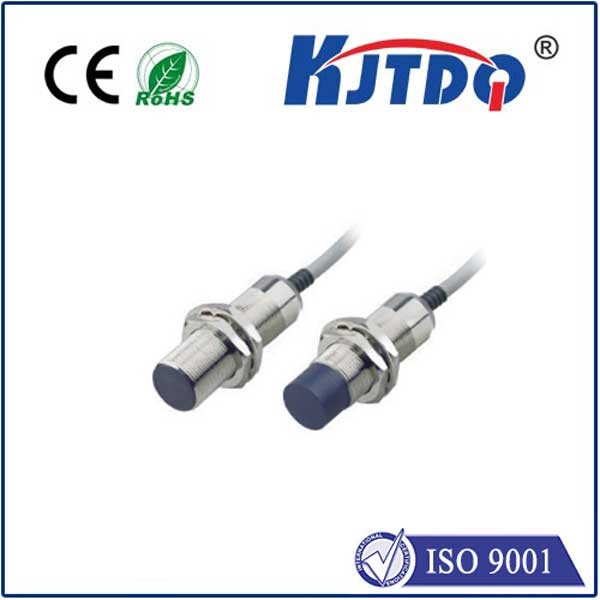

M18T Flush long distance proximity sensor

Long Distance Proximity Sensor

M18T Flush long distance proximity sensor

  • Product Type:KJT-J18MT
  • Installation Method:Flush
  • Detection Distance:8/12mm
  • Working Voltage:10-36VDC /90-250VAC
  • Output Mode:NPN/PNP NO/NC
  • Ambient temperature:-25℃~+70℃
  • Outlet method:2M PVC Cable
  • Product Detail

 kjt enhanced long-distance inductive proximity switch is a long-distance inductive proximity switch, including a shell, a high-frequency oscillation circuit, a shaping detection circuit, a signal processing circuit, and a switching output circuit. After the signal output by the high-frequency oscillation circuit is shaped and detected by the shaping and detection circuit, it is connected to the signal processing circuit.


●Can detect various metal objects DC 2NO
● With surge, overload, short circuit and reverse polarity protection functions DC 2NC
● Shell material: Nickel copper alloy DC 3 NPN NO
● Protection level: IP67(IEC) DC 3 NPN NC
●Ambient temperature: -25℃~+70℃ DC PNP NO

DC 3 PNP NC

--

--


1

Product Model
KJT-J18MT
Installation method Flush
Detection distance
8/12mm
Working temperature
-25~+70℃
Specifications M18*55
Operating Voltage
10-36V DC/90-250V AC

Ripple

<10%
No-load current <10mA
Maximum load current 200mA
Voltage drop ≤1.5V
On-off level 1000Hz
Hysteresis <15(Sr)
Overload protection current 180mA
Short circuit protection YES
Repeat accuracy <1.0%(Sr)
Temperature drift <10%(Sr)
Response time 0.5ms
Connection method 2M PVC lead wire
Protection level IP67
Sensing surface material PBT
Shell Material Nickel plated copper
EMC RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2






外观尺寸

5cc9ae54920e81b7efb51fa8b6796e95
