Nanjing KJT Electric Co,.LTD
KJT fiber optic sensor, with industry-leading dual-monitoring mode and built-in high-speed digital processing chip, can choose automatic and manual correction functions, with high precision detection capability ahead of similar products and detection distance beyond conventional fiber;Optimized design, with easy installation and maintenance of the wiring system.Optical fiber head products adopt standard thread installation, easy to install and use;Its use of stainless steel material, more durable;It is mainly used for installation in narrow space with high detection accuracy.
| Technical parameter | |
| Diameter | M3 |
| Reflection mode | Through beam |
| Sensing Distance SN [mm] | 0-1000mm |
| Optical fiber material | Plastic |
| Minimum detection object | φ0.5 |
| The pipe material | Stainless steel |
| Optical fiber type | Head of optical fiber |
| Fiber length [m] | 1m |
| Fiber core size | Core 0.5, outer diameter 1.0 |
| Output | PNP/NPN |

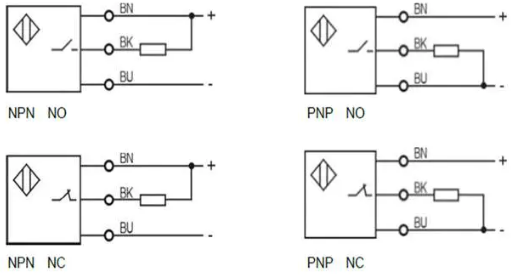

Wiring diagram
