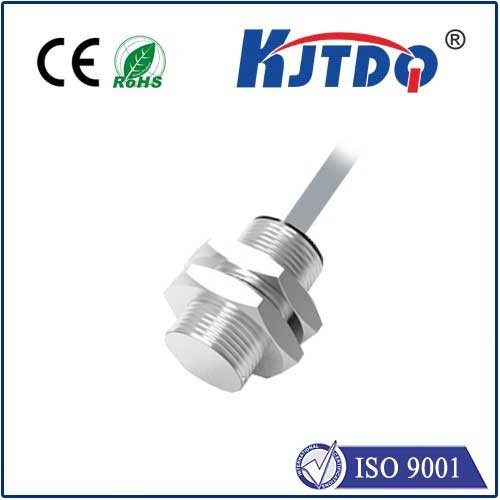

M30 Flush All-Metal Proximity Sensor

Metal face proximity sensor

M30 Flush All-Metal Proximity Sensor

  • Product Type:KJT-J30MQS
  • Installation:Flush
  • Detection distance:10mm
  • operating voltage:10-36VDC / 90-250VAC
  • Output Mode:Multiple output methods
  • Ambient temperature:-25℃~+70℃
  • Outlet method:2M PVC Leads
  • Product Detail

intrinsically safe NAMUR proximity switches are mainly used in equipment and environments that require explosion protection, such as coal mines, petrochemicals, etc. The NAMUR signal is the most widely used intrinsically safe digital input and frequency input standard signal in the world. The earliest is the German standard (DIN19234). Later it became a European standard (EN 50227, DIN EN 60947-5-6). The NAMUR signal is a passive 2-wire system, nominal 8VDC power supply, 1mA and 3mA switching signals. NAMUR type sensors are intrinsically safe explosion-proof instruments and are usually used in conjunction with isolated safety barriers.

● Detect various metal objects --
● With surge, overload, short circuit and reverse polarity protection functions DC 2 Wire NC
● Shell material: PBT --
● Protection grade IP66 (IEC) --
● Ambient temperature: -25℃~+70℃ --


1


Product Model
KJT-J30MQS
Installation method Flush
Detection distance
10mm
Working temperature
-25~+70℃
Specifications M30*1.5*55
Operating Voltage
10-36VDC / 90-250VAC
Ripples -
No-load current >2.2mA(OFF)< 1.1mA(ON)
Maximum load current
<10mA
Voltage drop -
On-off level 150Hz
Hysteresis <15(Sr)
Overload protection current -
Short circuit protection -
Repeat accuracy <3.0%(Sr)
Temperature drift <10%(Sr)
Response time 0.5ms
Connection method Terminal Type
Protection level IP66
Sensing surface material PBT
Shell Material PBT
EMC RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2


2

M30M

3

接线图

4


9
