KJT standard proximity switch has reliable action, stable performance, fast frequency response, long service life and strong anti-interference ability, and is widely used in machine tools, metallurgy, chemical industry, textile and Print industries. Product dimensions, cables, and detection distances can all be customized.
|

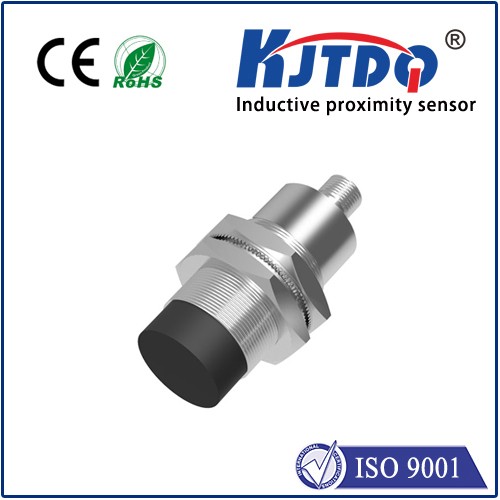

Product Model |
KJT-J30 |
| Installation method | Non-Flush |
|
Detection distance |
15mm |
|
Working temperature |
-25℃~+70℃ |
| Specifications | M30*1.5*55 |
|
Operating Voltage |
10-36VDC / 90-250VAC / 20-250VAC |
| Ripples | <10% |
| No-load current | <10mA |
| Maximum load current | 200mA |
| Voltage drop | ≤1.5V |
| On-off level | 1000Hz |
| Hysteresis | <15(Sr) |
| Overload protection current | 180mA |
| Short circuit protection | YES |
| Repeat accuracy | <3.0%(Sr) |
| Temperature drift | <10%(Sr) |
| Response time | 0.5ms |
| Connection method |
M12 Connector type |
| Protection level | IP67 |
| Sensing surface material | PBT |
| Shell Material | Nickel plated copper |
| EMC | RFI>3V/M / EFT>1KV / ESD>4KV(contact) |
| Shock/Vibration | IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2 |
