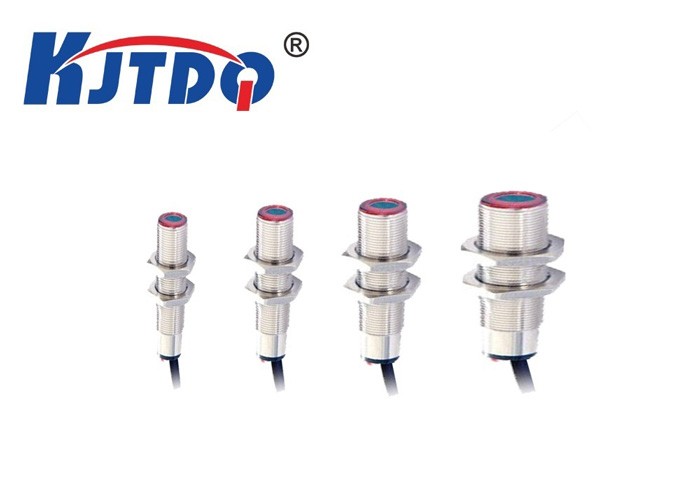

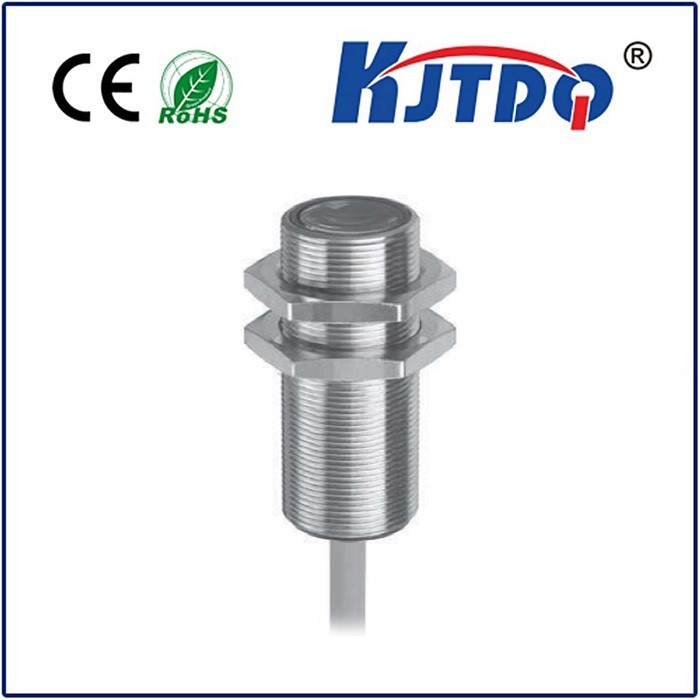

M30 Photoelectric Sensor (Reflective Plate)

Photoelectric sensor

M30 Photoelectric Sensor (Reflective Plate)

  • Product Model:KJT-FJ30
  • Detection distance:3m
  • Distance tolerance:<10%(Sr)
  • Shell material:Copper nickel plated or plastic
  • Operating voltage:10-30VDC
  • Response time:<5ms
  • Product Detail

  Photoelectric switches are controlled by converting changes in light intensity into electrical signals.KJT photoelectric switches are available in a wide range of products, such as diffuse reflective, specular reflective, counter-reflective, cylindrical, square, slotted, relay outputs, etc. KJT standard photoelectric switches are available in a wide range of products, such as diffuse reflective, specular reflective, relay outputs, etc. KJT standard photoelectric switches are available in a wide range of products, including diffuse reflective, specular reflective, relay outputs, etc.


主要技术参数


Product type

KJT-FJ30
Reflective mode Diffuse reflective
Detection distance 0.1
Distance tolerance <10%(Sr)
Shell material Copper nickel plated or plastic
Operating voltage 10-30VDC
Ripple ≤10%
Switching hysteresis <15%
Light source Infrared light (880nm)
Suitable for large output currents 200mA
No load current ≤30mA
Voltage drop ≤2.5V
Sensitivity adjustment Trimmer 1tum
Response time <5ms
Short circuit protection Yes
Power-up protection Yes
Operating temperature -25°C- 55°C
 Environmental humidity 35 to 85% RH
Suitable for intensity light ≤10.000Lux
Protection level IP66

尺寸图

58643dd7d435fac9931469b10881e9d0

接线图

4ae96743b5ff60d8f32b899a1d39c90f

场景图

1
