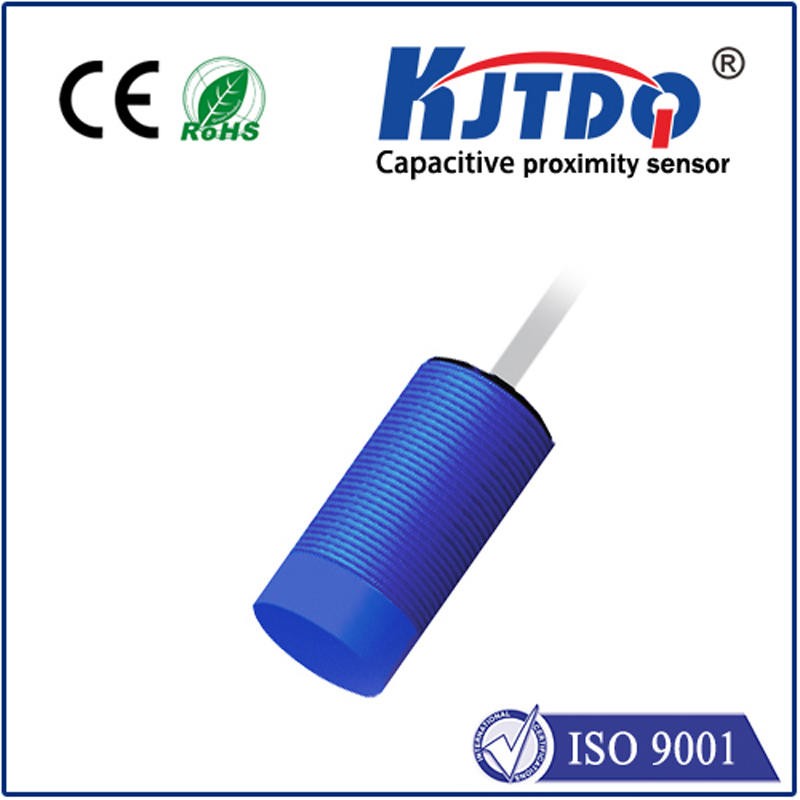

CAPACTIVE PROXIMITY SENSOR
Capacitive proximity sensor can be used without contact to detect any object. Capacitive proximity sensor could detect both of metal objects and non-metallic objects, regardless of color and surface state detected,and whether the objects be detected is transparent or not,they can test reliably,they have the sensitivity adjustable knobs.Non-metallic containers sealed liquid, powder and other materials can be indirect detection.
Technical parameter
Size
M30*87mm
Mounting
Unshielded
Sensing Distance SN [mm]
1-30mm adjustable
Housing material
ABS
Indicator
With LED
Operating voltage
10-36VDC
Output
PNP/NPN NO/NC/NO+NC
Ripple
<10%
No Load Current
<10mA
Max.Load Current
150mA
Leakage Current
<0.01mA
Voltage Drop
<1.5V
Switching Frequency
50 Hz
Response Time
1.5ms
Switching Hysteresis
<15%(Sr)
Repeat Accuracy
<3%(Sr)
Protection Degree
IP67
Operating Temperature
-25℃-+70℃
Temperature Drift
<10%(Sr)
Short Circuit Protection
Yes
Overload Trip Point
180mA
Connection
PVC Cable 2M

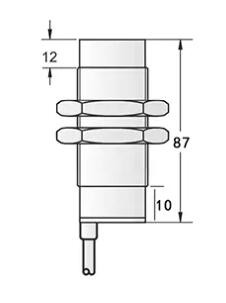

Product Size

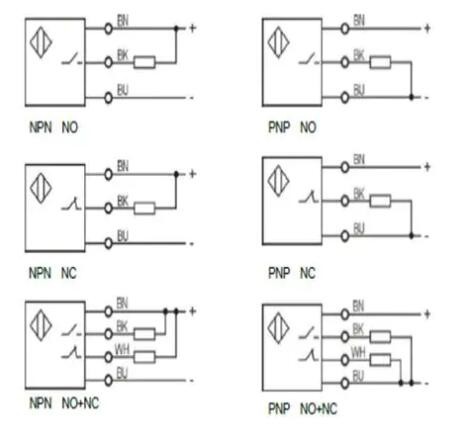

Wiring diagram
