M4 fiber optic sensor diffuse PNP/NPN Sn=0-80mm

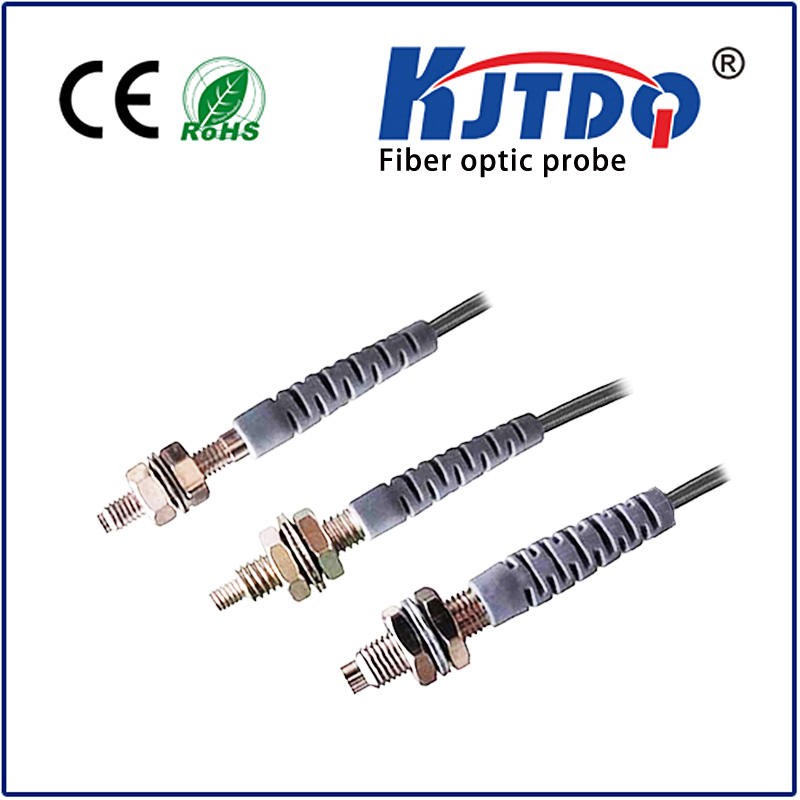

Fiber optic probe

M4 fiber optic sensor diffuse PNP/NPN Sn=0-80mm

Trade Terms FOB Nanjing/Shanghai
Payment Terms T/T, Western Union, PayPal
Delivery Time 3-15 working days for making sample. 7-20 working days for production.
Packing Standard Export Cartons
Shipping By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ 5PCS
Place of Origin Nanjing City, Jiangsu Province, China
Certificate CE,RoHS,ISO9001
  • Product Detail
FIBER SENSOR

KJT fiber optic sensor, with industry-leading dual-monitoring mode and built-in high-speed digital processing chip, can choose automatic and manual correction functions, with high precision detection capability ahead of similar products and detection distance beyond conventional fiber;Optimized design, with easy installation and maintenance of the wiring system.Optical fiber head products adopt standard thread installation, easy to install and use;Its use of stainless steel material, more durable;It is mainly used for installation in narrow space with high detection accuracy.

Technical parameter
Diameter M4
Reflection mode Diffuse
Sensing Distance SN [mm] 0-80mm
Optical fiber material Plastic
Minimum detection object φ0.1
The pipe material Stainless steel
Optical fiber type   Head of optical fiber
Fiber length [m] 1m
Fiber core size Core 0.5, outer diameter 1.0
Output PNP/NPN

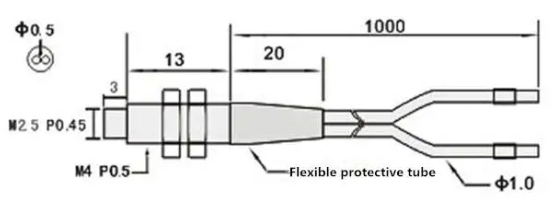

Product Size

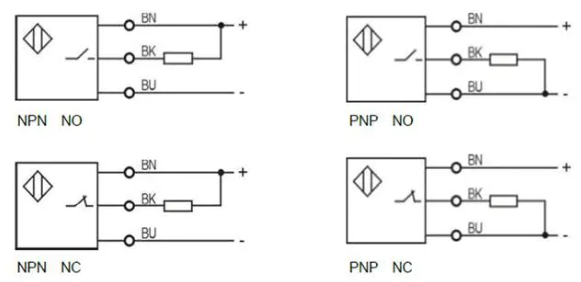

Wiring diagram
