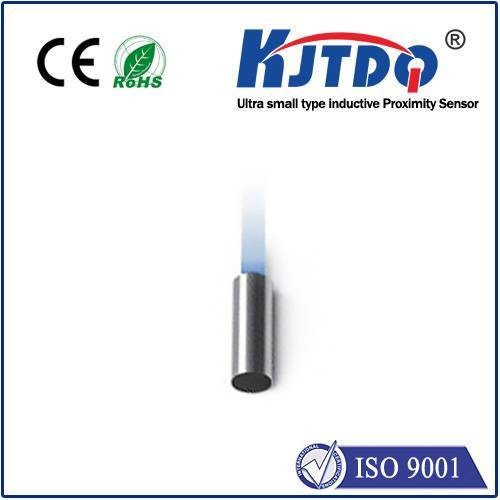

ULTRA SMALL PROXIMITY SENSOR
The ultra small proximity sensor is based on the conversion of optical quantity and USES optical signal as the carrier of transformation and transmission.
Technical parameter
Size
J6.5*18mm
Mounting
Shielded
Sensing Distance SN [mm]
1/2 mm
Housing material
Stainless steel
Indicator
With LED
Operating voltage
10-36VDC
Output
PNP/NPN NO/NC
Ripple
<10%
No Load Current
<10mA
Max.Load Current
150mA
Leakage Current
<0.01mA
Voltage Drop
<1.5V
Switching Frequency
2K Hz/1K Hz
Response Time
0.1ms
Switching Hysteresis
<15%(Sr)
Repeat Accuracy
<3%(Sr)
Protection Degree
IP67
Operating Temperature
-25℃-+70℃
Temperature Drift
<10%(Sr)
Short Circuit Protection
YES
Overload Trip Point
200mA
Connection
PVC Cable 2M

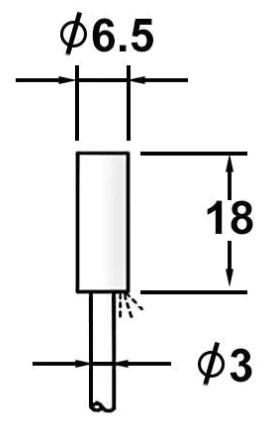

Product Size

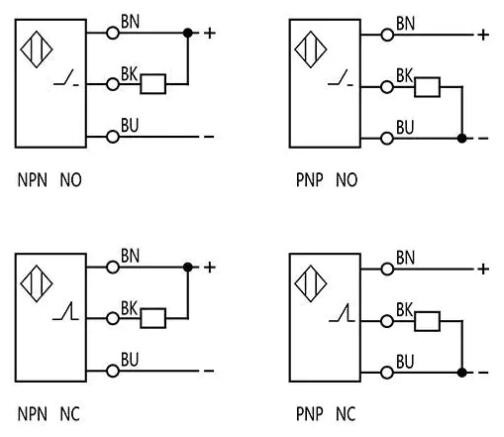

Wiring diagram
