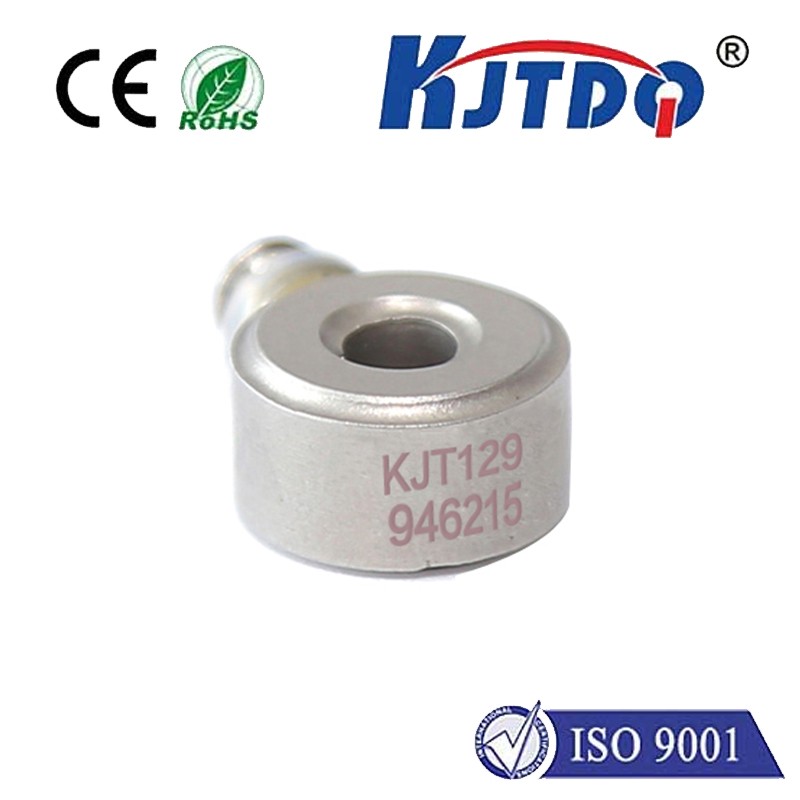

Piezoelectric force sensors are sensors that utilize the piezoelectric effect of piezoelectric materials and use quartz as a sensitive element to convert the measured force into an electrical signal to feel quasi-static force and dynamic force. Rugged construction, long service life, wide usable frequency range and wide dynamic range make it ideal for dynamic force measurement. IEPE circuit can be installed to output voltage signal.

Measuring range	5KN
Sensitivity	4pc/N
Natural frequency	≥75KHz
non-linearity	≤1%
temperature range	-54°C~+121°C
Housing material	Stainless Steel
Sealing method	Laser welding

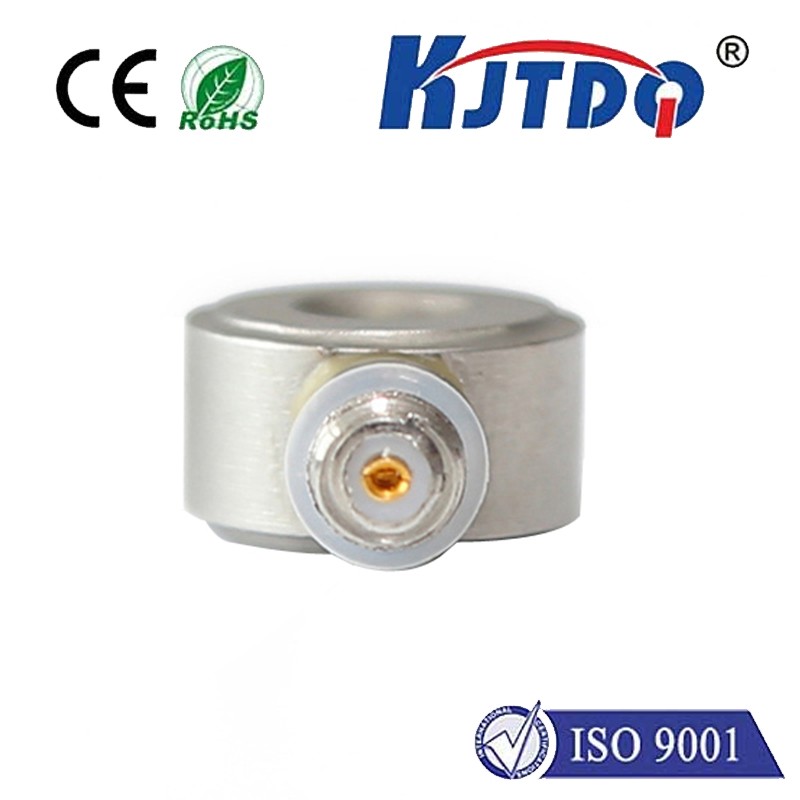

output method	M5
size	φ12.5mm x φ4mm x 7mm
weight	4G
Installation method	φ4 Through hole
connecting cables	D01
