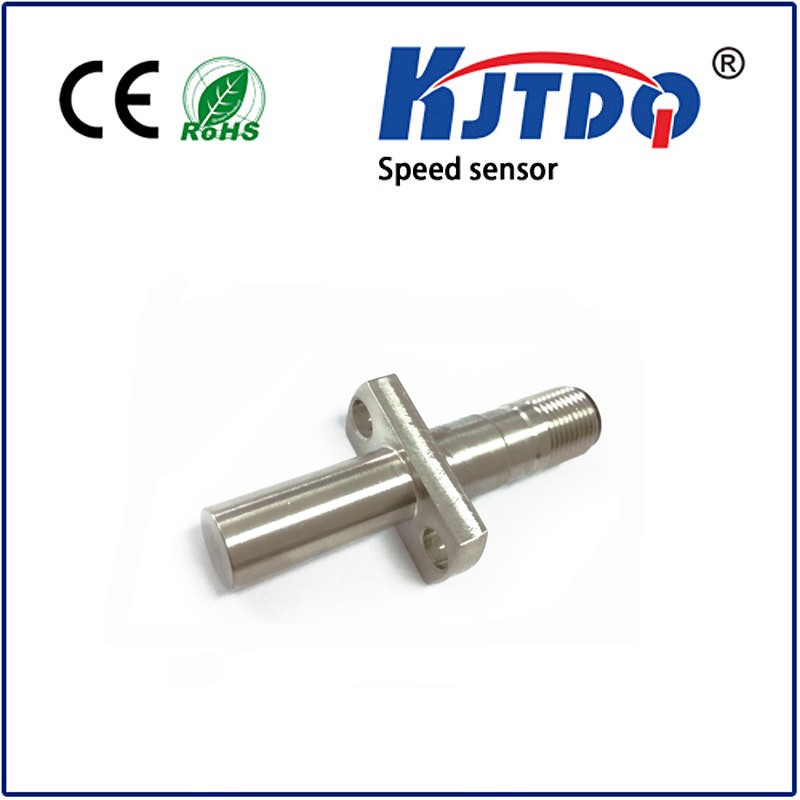

M12 Hall Proximity Sensor , Gear Speed Sensor For Hydraulic Motor

Hall effect speed sensor

M12 Hall Proximity Sensor , Gear Speed Sensor For Hydraulic Motor

Trade Terms FOB Nanjing/Shanghai
Payment Terms T/T, Western Union, PayPal
Delivery Time 3-15 working days for making sample. 7-20 working days for production.
Packing Standard Export Cartons
Shipping By sea, By air or By express delivery (DHL/UPS/FEDEX/TNT/EMS)
MOQ 5PCS
Place of Origin Nanjing City, Jiangsu Province, China
Certificate CE,RoHS,ISO9001...
  • Product Detail
SPEED SENSOR


The KJT D12A series Differential Hall-Effect Speed sensors are suitable, in conjunction with a ferrous pole wheel, for generating square wave signals proportional to rotary speeds. The D12A exhibits a static function, whereby pulse generation down to 5 Hz is guaranteed.

Technical parameter

Signal Output

Square Wave signal from push-pull output stage, DC-coupled to the supply, 30 mA max. load current

Thread Length

1.0" M12x1 thread

Supply Voltage

8-32VDC

Maximum current consumption

15 mA (without load)

Frequency Range

5-20 kHz

Housing

M12x1

Tightening Torque

max 12 Nm

Connection

Connector, M12x1 thread, 4 pins, black

Operating Temperature

-104-257°F (-40-125°C)

Protection

IP68 (Sensor) / IP67 (Cable)

Insulation

housing and electronics galvanically isolated (Test: 500V, 50 Hz for 1 minute)

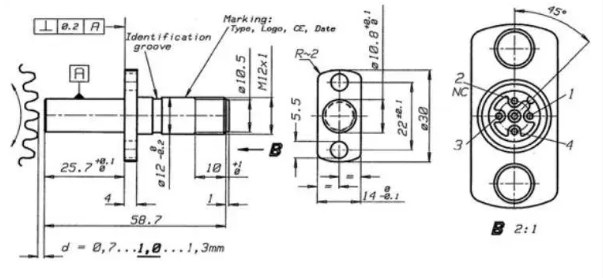

Product Size

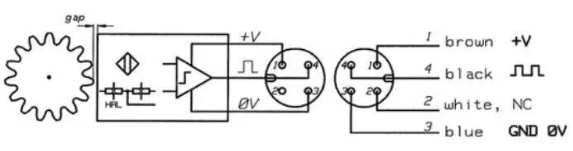

Wiring diagram
