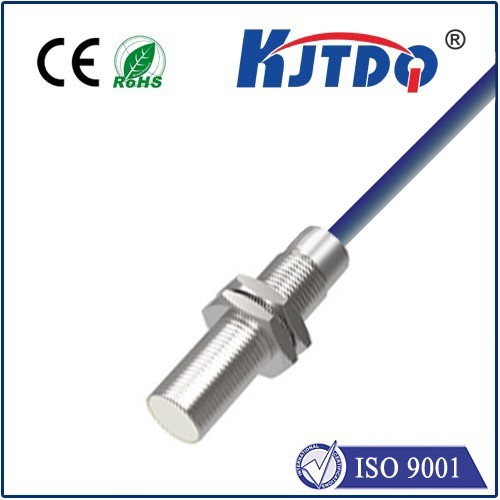

-50°C M12 Flush Low Temperature Inductive Proximity Sensor

Low temperature proximity sensor

-50°C M12 Flush Low Temperature Inductive Proximity Sensor

  • Installation Method:Flush
  • Detection Distance:2mm
  • Working Voltage:10…250V DC/AC
  • Output Mode:NPN/PNP NO/NC/NO+NC
  • Switch point offset:≤±10%
  • Hysteresis range:1…20%
  • Product Detail

  KJT high and low temperature resistant proximity switches are used for detection, positioning and counting in high temperature and harsh environments. The probe can withstand -50℃ medium temperature. This product operates stably in a high-temperature -50°C environment and has high reliability, short circuit, and reverse polarity protection. Therefore, it is widely used in related manufacturing industries such as steel, metallurgy, glass, and chemical fiber factory transportation pipelines. At the same time, it can meet the requirements for detecting metals or non-metals in low-temperature and severe cold environments.


●Can detect various metal objects DC 2 NO
● With surge, overload, short circuit and reverse polarity protection functions DC 2 NC
Shell material: Nickel-plated copper DC 3 NPN NO
● Protection level: IP67(IEC) DC 3 NPN NC
●Ambient temperature: -50℃ DC PNP NO

DC 3 PNP NC

AC 2 NO

AC 2 NC


1

Product Model
KJT-J12W
Installation method Flush
Detection distance
2MM
Working temperature
-50
Specifications M8*1*45
Operating Voltage
10-36V DC/90-250V AC

Ripple

<10%
No-load current <10mA
Maximum load current 200mA
Voltage drop ≤1.5V
On-off level 1000Hz
Hysteresis <15(Sr)
Overload protection current 180mA
Short circuit protection YES
Repeat accuracy <1.0%(Sr)
Temperature drift <10%(Sr)
Response time 0.5ms
Connection method 2M silicone wire
Protection level IP67
Sensing surface material PTFE
Shell Material Nickel plated copper
EMC RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2


2

e6d5a50cb4fc1fab80dc91bcd0e9ec6c

3

4ae96743b5ff60d8f32b899a1d39c90f

4


9
