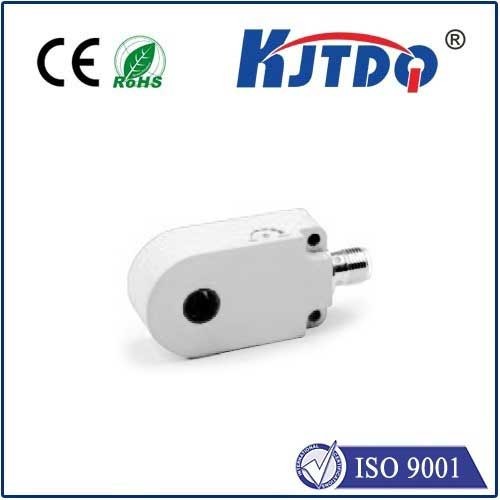

φ10mm Ring Inductive proximity Sensor(plug-in)

Ring proximity sensor

φ10mm Ring Inductive proximity Sensor(plug-in)

  • Product Type:KJT-T10C
  • Installation Method:Non-Flush
  • Detection Distance:10mm
  • Working Voltage:10-36VDC
  • Output Mode:NPN/PNP NO/NC
  • Output Mode:-25℃~+70℃
  • Outlet method:Connector M12,4-pin
  • Product Detail

KJT ring proximity switch has a variety of sensing apertures of 6mm/10mm/15mm/21mm, with two working principles: dynamic and static. High resolution: Even small steel balls with a diameter of 0.6mm can be reliably detected. The particularly fast response time of 0.2ms can set the pulse extension and sensitivity through the potentiometer. With wires and connectors, normally open and normally closed functions are optional. Suitable for detecting metal parts on automated conveying systems, such as spring screws, etc. This sensor has the characteristics of high resolution and short response time.

●Can detect various metal objects --

● With surge, overload, short circuit and

   reverse polarity protection functions

--
Shell material: PBT DC 3 NPN NO
● Protection level: IP67(IEC) DC 3 NPN NC
●Ambient temperature: -25℃~+70℃ DC PNP NO

DC 3 PNP NC


1

Product Model
KJT-T10C
Installation method Non-Flush
Detection distance
10MM
Working temperature
-25~+70℃
Specifications 60*35-20
Operating Voltage
10-36V DC

Ripple

<10%
No-load current <10mA
Maximum load current 200mA
Voltage drop ≤1.5V
On-off level 1000Hz
Hysteresis <15(Sr)
Overload protection current 180mA
Short circuit protection YES
Repeat accuracy <1.0%(Sr)
Temperature drift <10%(Sr)
Response time 0.5ms
Connection method M12,4-pin
Protection level IP67
Sensing surface material PBT
Shell Material PBT
EMC RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2



外观尺寸

T10-C12
