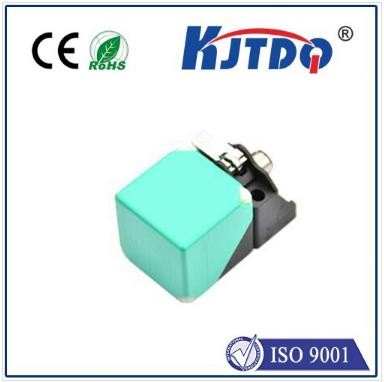

KJT square proximity switch, non-contact detection method, fast response and high frequency. A variety of specifications and sizes are available, and the product appearance can be customized.
| ●Can detect various metal objects | DC 2 NO |
| ● With surge, overload, short circuit and reverse polarity protection functions | DC 2 NC |
| ●Shell material:PC | DC 3 NPN NO |
| ●Protection level: IP67(IEC) | DC 3 NPN NC |
| ●Ambient temperature: -25℃~+70℃ | DC PNP NO |
|
|
DC 3 PNP NC |
|
|
-- |
|
|
-- |
| Product number | KJT-BFT40 |
| Installation method | Non-Flush |
| Detection distance | 15mm/20mm/25mm |
| voltage | 10…36VDC |
| output method | NPN/PNP NO/NC |
| Switch point offset | ≤±10% |
| hysteresis range | 1…20% |
| Repeat error | ≤3% |
| Load current | ≤200mA |
| Residual voltage | ≤2.5V |
| Current consumption | ≤10mA |
| protection circuit | Surge, reverse polarity protection |
| Output instructions | Red LED |
| ambient temperature | -25…70℃ |
| environment humidity | 35-95% |
| On-off level | 1000 Hz |
| Protection level | IP67 |
| Sensing surface material | PC |
| Wiring | connector |
