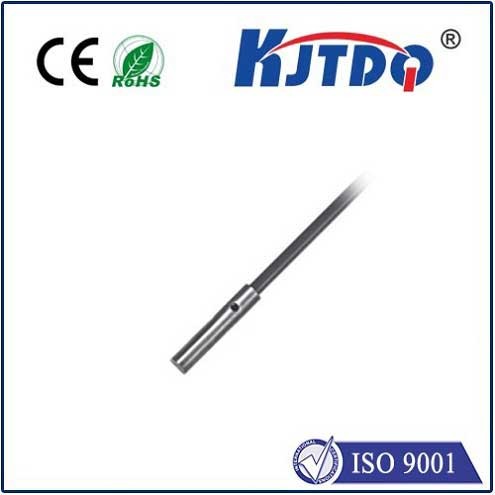

D4 Subminiature Inductive Proximity Sensor

Ultra Small inductive proximity sensor

D4 Subminiature Inductive Proximity Sensor

  • Product Series:KJT-D4
  • Installation:Flush
  • Detection distance:0.8mm/1.0mm/1.2mm/1.5mm
  • operating voltage:10-36V DC
  • output method:NPN/PNP NO/NC
  • environmental temperature:-25℃~+70℃
  • outlet:2M PVC Leads
  • Product Detail

KJT ultra-small proximity switch, micro integrated circuit metal detector. Specifications: φ3, φ4, M4, M5, φ6.5, M8, etc., can be installed in small and compact spaces, are simple to install, have high working precision and good anti-interference performance, and are suitable for high-precision equipment and micro metal detection

● Detect various metal objects DC 2NO
● With surge, overload, short circuit and reverse polarity protection functions DC 2NC
● Shell material: Nickel copper alloy DC 3NPN NO
● Protection grade IP67(IEC) DC 3NPN NC
● Ambient temperature:-25℃~70℃ DC PNP NO

DC PNP NC

1



Product Model
D4*25
Installation method Non-Flush
Detection distance
0.8mm/1.0mm/1.2mm/1.5mm
Working temperature
-25~70℃
Specifications D6.5*45
Operating Voltage
10-36V DC
Ripples <10%
No-load current <10mA
Maximum load current 200mA
Voltage drop ≤1.5V
On-off level 1000Hz
Hysteresis <15(Sr)
Overload protection current 180mA
Short circuit protection YES
Repeat accuracy <3.0%(Sr)
Temperature drift <10%(Sr)
Response time 0.5ms
Connection method 2M PVC Leads
Protection level IP67
Sensing surface material PBT
Shell Material Nickel plated copper
EMC RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)
Shock/Vibration IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2
