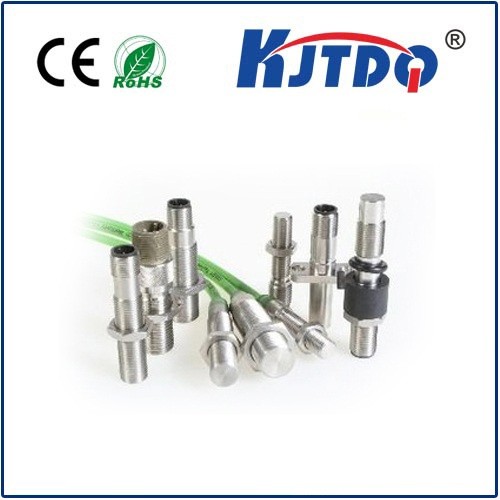

DSD1205.21ATV speed sensor

Speed Sensor

DSD1205.21ATV speed sensor

  • Power supply voltage:8-30VDC
  • Current consumption:适合大15mA
  • Output signal Vo:push-pull output Imax=+/-20mA,Ulow<2.5V,Uhigh>Usupply-3.5V
  • Frequency range:0-20KHz
  • Air gap:Module0.5:0.1to0.3mm;Module1:0.1to1.5mm;模数2:0.1to2.0mm
  • Shock resistance:5gn(5…2000Hzrange)
  • Product Detail

The core component of Kejit gear speed sensor uses magnetoresistance as the detection component, and then uses a new signal processing circuit to reduce noise and improve functions. By comparing with the output waveforms of other types of tooth speed sensors, the error of the measured speed is extremely small and the linear characteristics are very consistent. The sensing objects are magnetic materials or magnetically permeable materials, such as magnetic steel, iron and electrical steel. When the magnetic or permeable material with protrusions (or depressions) on the measured object rotates as the measured object, the sensor outputs a pulse signal related to the rotation frequency to achieve the purpose of speed measurement or displacement detection.

参数

voltage 8-30VDC
Current consumption Suitable for up to 15mA
Output signalVo Push-pull output Imax=+/-20mA,Ulow<2.5V,Uhigh>Usupply-3.5V
Frequency Range 0-20KHz
air gap Module0.5:0.1to0.3mm;Module1:0.1to1.5mm;Module2:0.1to2.0mm
Earthquake resistance 5gn(5…2000Hzrange
Impact resistance 50gn(during 20ms, half sine wave
Protection level Sensor head: IP68; cable connection and connector: IP67
temperature range -40°C…+125°C
structure Stainless steel or plastic housing, sold with epoxy resin encapsulation
