After years of engineering and field needs, KJIT has developed an industrial wireless network system based on LORA, NB-IoT and other communications, building an information bridge between the field and the control room, allowing you to communicate in vast areas and Comprehensive monitoring of areas inaccessible to personnel。

○ KJT-WN series wireless proximity switches bring you more convenience

● There is no need to dig trenches and wire cables, which greatly reduces cable and labor costs and the project cycle.

● Simplify engineering design and reduce the workload of designers (especially cable routing).

● Affected by natural terrain such as bridges, rivers, and mountains, cables cannot be laid arbitrarily.

● According to the increase of detection points, a private data collection network can be quickly established, and the expansion is flexible and convenient.

● When a fault occurs, the detection points are concentrated, eliminating the cumbersome tasks encountered in the past when inspecting along the line.

Product Model	KJT-WN12
Installation method	Flush					Non-Flush
Sensing distance	2mm					4mm
Product Size	M8
Applicable standards	EN 60947-5-2, EN 61000-6-2, EN 61000-6-3
Shell	Stainless Steel/PBT
Operating head	Steel Plate 8 x 8 x 1 mm, FE 360
Front cover	POM
back cover	POM
Protection level	IP 67 conforming to IEC/EN 60529

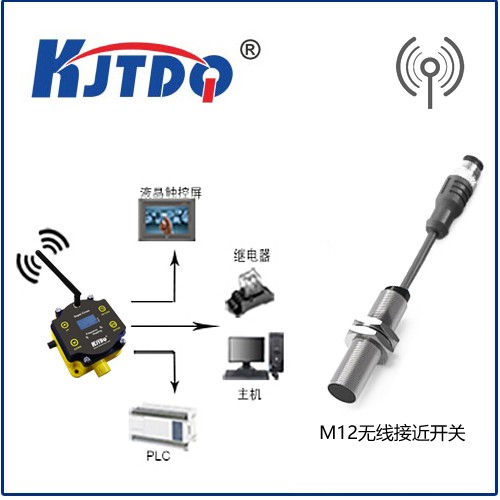

Connection Type	Coupling M12 x 1, 4-pin, for connection to the wireless universal transmitter series KJT-WDTC
cable length	0.5 m, 1 m or 2 m
ambient temperature	-25℃ … +70℃
Rated insulation voltage	75 VDC
Rated operating current	0.2 mA
Rated working voltage	3 … 5 VDC
Hysteresis	about 10%
Repeatability	≤ 5 %
Power supply	Battery/external power supply
On-off level	see KJT-WDTC
Correction factor	Steel (Fe360) = 1; Stainless steel approx. 0.7; Brass approx. 0.5; Aluminium approx. 0.4; Copper approx. 0.4
Comment	The sensor may only be used in combination with KJT-WDTC
