Digital Color Sensor KJT-YED02

Photoelectric sensor

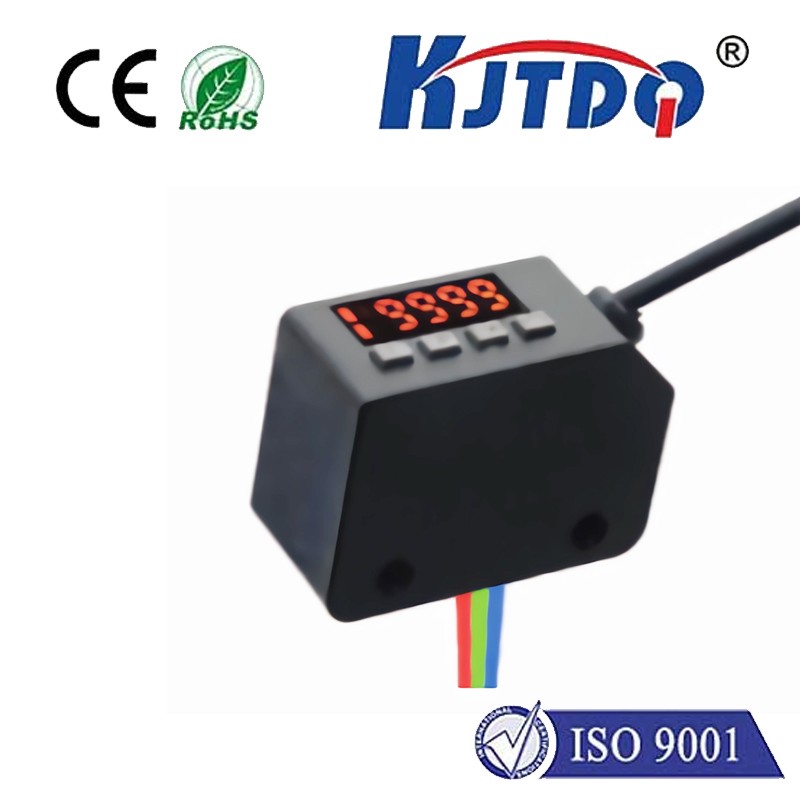

Digital Color Sensor KJT-YED02

  • Detection method:Reflective
  • Light source :RGB tricolor light
  • Detection distance:12±3mm
  • Output :NPN/PNP
  • Product Detail

KJT high-precision color mark sensor combines the characteristics of small spot size and fast response, and can complete high-speed contrast detection work. The S50PM is capable of effectively detecting contrast differences between multiple colors on a variety of surfaces over a range of 50 gray levels. The adjusted white light source can be focused into a 2.5-3mm spot and directed towards the target. The diffuse light returning to the sensor is measured. The digital output changes state when its level equals or exceeds the threshold. Because the sensor responds quickly, it is suitable for high-speed applications. Sensor provides digital output and is automatically configurable

NPN and PNP. A PLC or computer can be used to monitor the status of digital output signals.


1


Product Paramenters
Product number KJT-YED02
Sensing distance 12±3mm
Principle MARK, C, CI three detection modes
light source RGB tricolor light
Supply voltage DC12-24V pulsation(P-P) less than 10%(DC10-30V
Response time 30us
Control output Load voltage: 26V MAX Negative charge current: 100mAMAX Residual voltage: below 1V MAX voltage: below 1VMAX
Loop protection Surge protection circuit, short circuit protection, reversepolarity protection
Ambient temperature When no icing occurs: -45C-+85C When stored withouticing:-40C-+70°C
Display indicator Operation indicator light: red light-emitting diode: single-digit monitor: single-digit display and four-digit display
Connection method Wire lead-out type (2 meters)
Shell material PC

e5b387f50cd937bdf9978f7480ded313_

3

48d15c9616eff25f3efb1c87b0ecbaca_

rgbsebiaochicuntu


c01ea261d3ab5687c17f83cb98f20828_

RGByingyongchangjingtu
