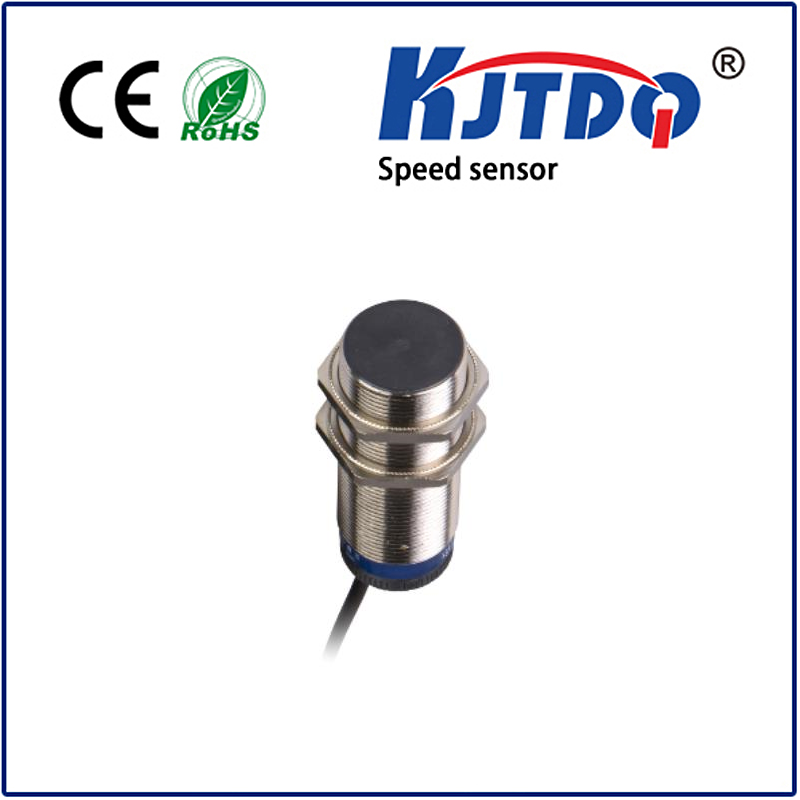

M30 shielded speed switch 3 wire PNP KJT-KG-JZ-K3 SN 10mm

Speed control switch

Monitoring the rotational speed of the switch from inhibition referred speed switch for belt conveyor, bucket upgrade, propeller, grinders, crushers, pumps,Centrifugal dry fire, mixer monitoring skid, belt breakage, shaft cut and overload.
Action principle
Switch outputs a signal by the comparator treatment, and the measured object movement also generates an oscillation frequency into the comparator, when the frequency of the oscillation frequency of the measured object set frequency is less than the speed switch
Switch is turned on; when the vibration frequency is greater than the measured object speed switch setting frequency switch is closed o KG-Z-K1 objects suitable for detecting low-speed, low speed when the object moves
The preset speed, the switch output is open.
Note: All speed switch shall be energized delay 9 seconds to make the starting line monitoring of machines and equipment. Figure 1 is a broken link monitoring.
Adjustment
Switch enables multi-turn potentiometer to adjust the frequency increases clockwise, counterclockwise rotation frequency is reduced

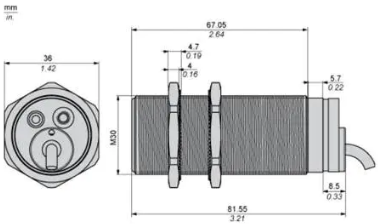

Technical parameter
Range of product	OsiSense XS
Series name	Application
Sensor type	Speed Switch
Device application	Rotation monitoring
Sensor name	XSA
Sensor design	Cylindrical M30
Size	81mm
Body type	Fixed
Detector flush mounting acceptance	Flush mountable
Material	Metal
Enclosure material	Nickel plated brass
Type of output signal	Discrete
Wiring technique	3-wire
[Sn] nominal sensing distance	10MM
Discrete output function	1NC
Output circuit type	DC
Discrete output type	PNP
Electrical connection	Cable
Cable length	2M
[Us] rated supply voltage	12...48 V DC with reverse polarity protection
Switching capacity in mA	<= 200 mA with overload and short-circuit protection
IP degree of protection	IP67 conforming to IEC 60529
Thread type	M30 x 1.5
Detection face	Frontal
Front material	PPS
Adjustable frequency range	120…3000 cyc/mn
Operating zone	0…8 mm
Differential travel	3...15% of Fr
Repeat accuracy	3% of Sr
Cable composition	3 x 0.34 mm²
Wire insulation material	PvR
Status LED	Output state: 1 LED (red)
Supply voltage limits	10…58 V DC
Switching frequency	<= 800 Hz
Maximum voltage drop	<1.8 V (closed)
Current consumption	0...15 mA no-load
Run-up delay at power-up	9 s standard
Marking	CE
Threaded length	57MM
Height	30MM
Length	81MM
Product certifications	CCC CSA UL
Ambient air temperature for operation	-25…70 °C
Ambient air temperature for storage	-40…85 °C
