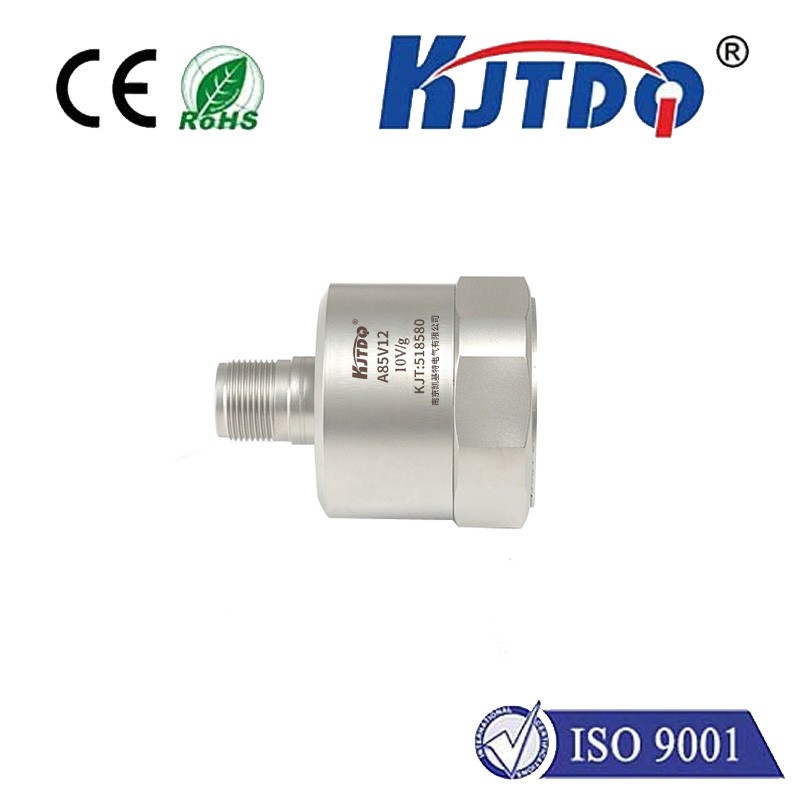

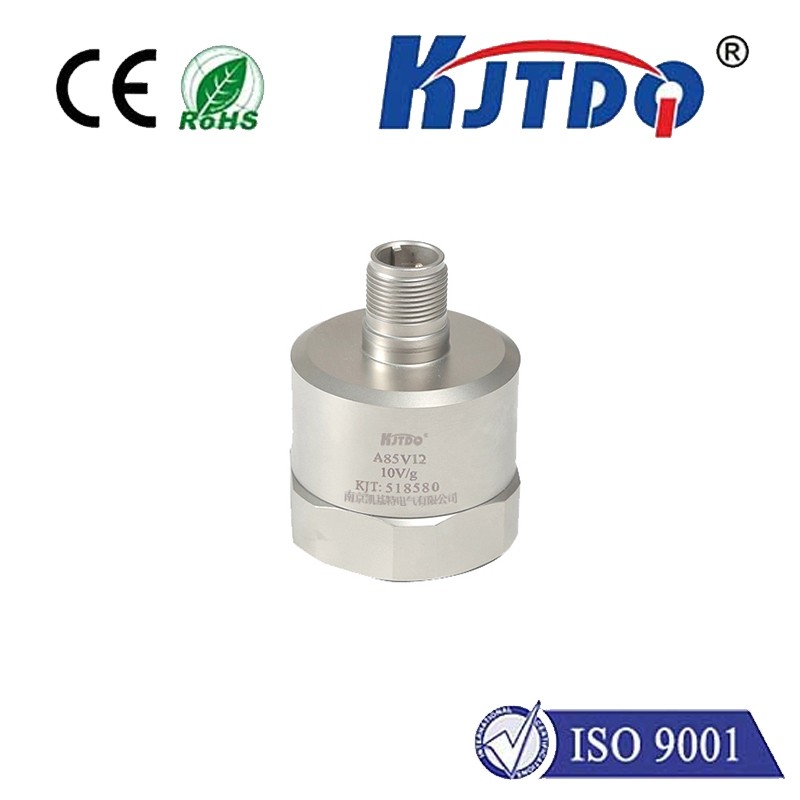

This series of acceleration sensors are designed for monitoring low and extremely low frequencies of earthquakes, large buildings and bridges. They have the advantages of high sensitivity and low background noise. They are suitable for building vibration monitoring, earthquake detection, bridge structure testing, ground and foundation vibration. Monitoring, geological structure research and other low-frequency vibration testing occasions.

Dynamic Characteristics
Measuring range (peak value)	±0.5g
Sensitivity(25℃)	10V/g
Frequency response (±1dB)	0.1-500Hz
Installation resonant frequency	≥4500Hz
Lateral sensitivity ratio	≤5%
Excitation voltage	18-28VDC(A constant current source)
Constant current source excitation (mA)	2-10mA
Output impedance	<100Ω
Full scale output (peak value)	±5V
bias voltage	+9V~+12V
Install ground insulatio	>10^8Ω
Operating temperature	-40℃~+120℃
Impact limit (peak value)	±500g
Sensitive parts	Ceramic shear
Dimensions	φ45mm x48.5mm
Housing material	Stainless steel
output method	2 Pin MIL-C-5015
Installation method	1/4-28
weight	440g
Appendix
mounting bolts	1/4-28 to M6
cable	D03-3米
