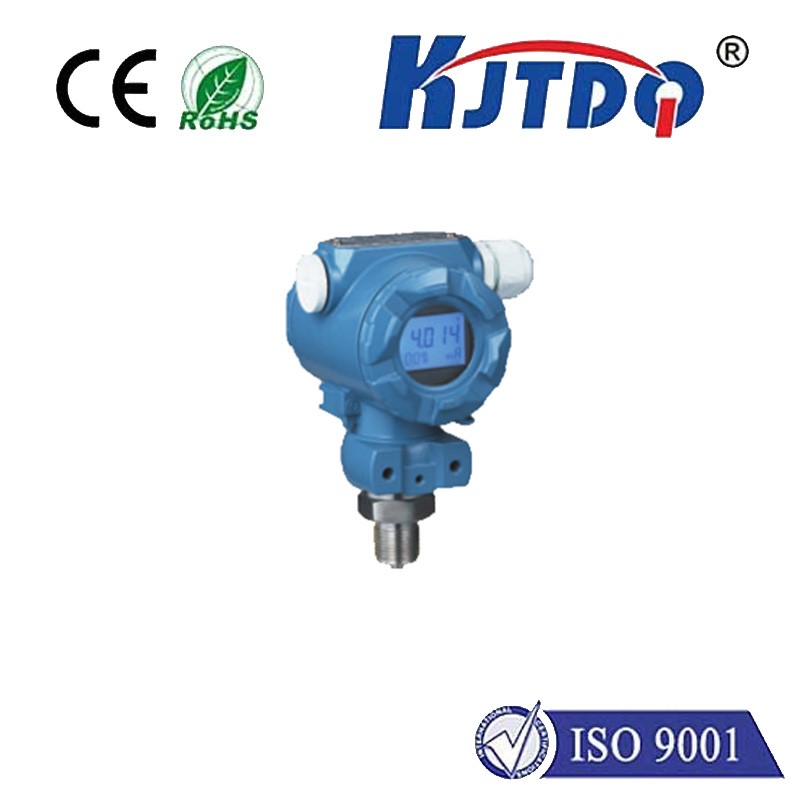

The transmitter can be used to measure the pressure, level and other parameters of fluids (liquids, gases and vapors) and convert the measured signal into a 4-20mA standard electrical output, which can be used as an input signal for indicating, recording and regulating.HC800 pressure transmitter has the advantages of small size, light weight, high accuracy, low price, etc., and can be equipped with on-site indicator meter, zero migration, range extension and other functions. It can be intrinsically safe and flameproof, and has all the functions of industrial pressure transmitter.
| type | clarification | |
| KJT- 1600 |
|
General Pressure Transmitter |
| Appearance | G | High Temperature |
| M | Flange diaphragm type | |
| Q | flush membrane | |
| K | Hygienic clamp type | |
| signal output | E | 4-20mA |
| V5 | 0-5V | |
|
V10 |
0-10V | |
| output level | 1 | 0.5 level |
| 2 | 0.2 level | |
| process connection | A | 20*0.5 |
| B | G1/4 | |
| Display Mode | 0 | Without display |
| M3 | With LED header display | |
| Power supply method | A | DC24V battery powered |
| Measurement range | -100kPa-60MPa | Customer Choice |
